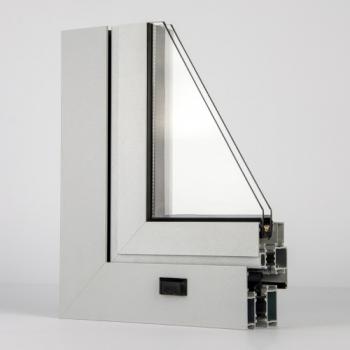

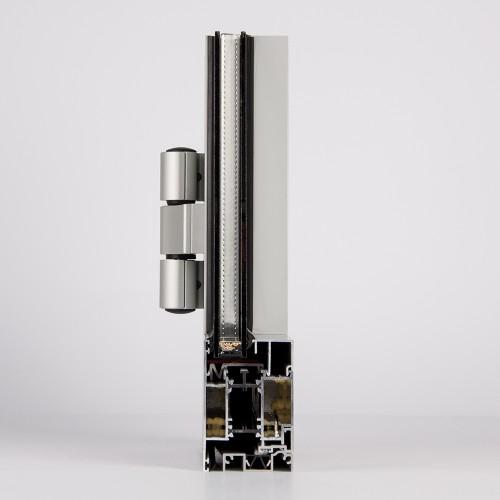

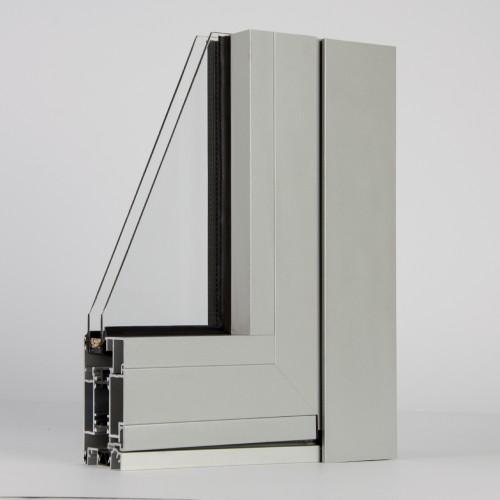

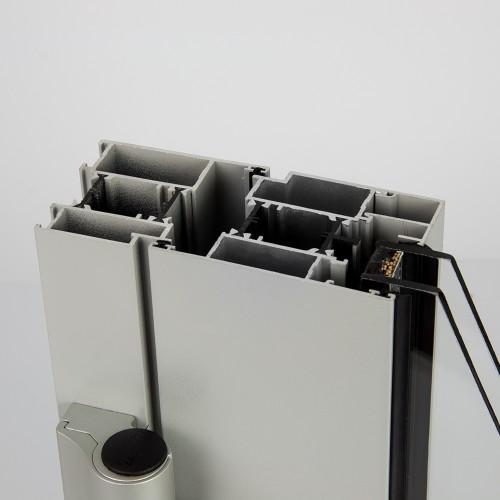

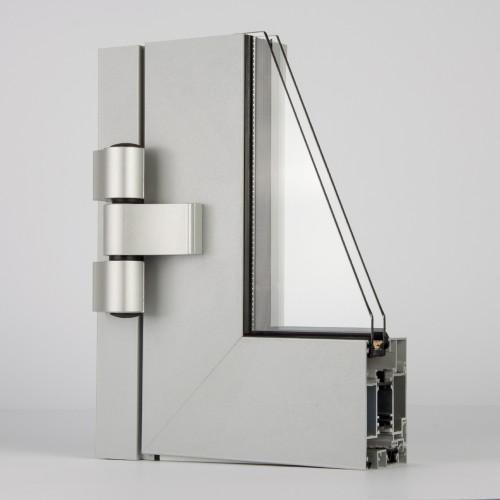

Aliplast Imperial

System for patio doors with thermal break.

Free valuation within 24h

Prepare the specification, fill in the form and within 24 hours we will send you a quote

Applications:
To separate terrace and living quarters in houses and flats. Separations for conservatories looking out into the garden and to create space in a passage way.

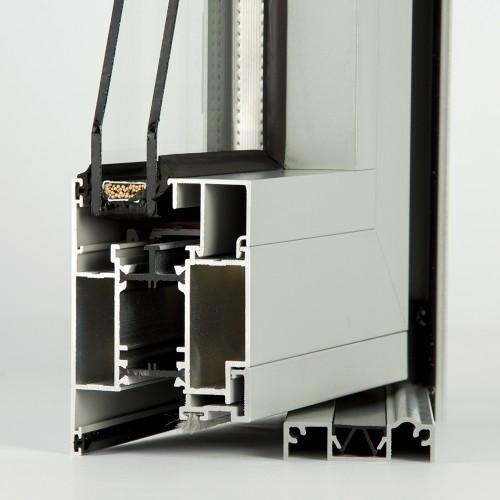

Imperial 800 i+

A door system designed for designing doors with high thermal insulation parameters.

The system is compatible with the Imperial system - thanks to adaptive profile designs in series IP 800, it can be integrated with Imperial shop windows.

The system features very good anti-burglary properties (the lock is situated far from the outer side).

A thermal insulation threshold is used, which can be disassembled following door installation in the frame.

The system offers solutions preventing the catching of fingers (antyfinger).

The option of bending profiles (detailed specification of profiles and detailed technical parameters of the profile bending process are available in the authorisation zone of the website www.aliplast.pl).

The system IP 800 is also available in the variant with improved thermal insulation power:

IP 800 i
IP 800 i+

which was achieved by applying special thermal inserts that slide between thermal separators and around the glass panel. Such a solution improves the insulating power of the profile by 0,2 - 0,5 W/m²K.

There is the possibility of using the Flyscreen system (Flyscreens – fly screens are a practical and extremely functional protection against insects).

Wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodized colour (Qualanod 1808), bi-colour.

Technical Specification:

IP 800

Material - aluminium / polyamide
Depth of frame - 65 mm
Depth of leaf - 65 mm
Glazing range - 14-51 mm
Maximum door sizes - single-leaf door: 1300 x 2800 mm / double-leaf door: 2500 x 2600 mm

IP 800 i+

Material - aluminium / polyamide
Depth of frame - 65 mm
Depth of leaf - 65 mm
Glazing range - 14-51 mm
Maximum door sizes - single-leaf door: 1300 x 2800 mm / double-leaf door: 2500 x 2600 mm

Performance:

IP 800

Thermal insulation Uf* - Uf from 1,84 W/m²K
Air permeability - Class 4; EN 12207
Windload resistance - Class CE 2400; EN 12210
Watertightness - Class 8A; EN 12208

IP 800 i+

Thermal insulation Uf* - Uf from 1,67 W/m²K
Air permeability - Class 4; EN 12207
Windload resistance - Class CE 2400; EN 12210
Watertightness - Class 8A; EN 12208

*Thermal insulation is dependent on a combination of profiles and thickness of the filling.

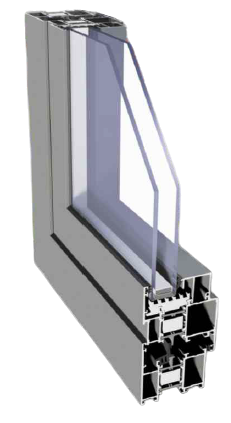

Imperial i+

The system is designed for windows, doors, and shop windows with high thermal insulation parameters.

A high thermal insulation power was achieved by applying special thermal inserts between thermal separators and around the glass pane. Available options: IP, IP i, IP i+.

Large number of shapes in the system guarantees the obtained desired appearance and structural strength.

The option of installing windows in facade systems.

Glazing strips available in a rectangular and circular variant.

The shapes of profiles are suitable for the installation of various peripheral hardware, including hidden hinges and PCV hardware.

A broad range of glazing allows using all types of single and double cavity, acoustic and anti-burglary glass panes.

Profile drainage in two variants: traditional and hidden.

There is the possibility of using the Flyscreen system (Flyscreens – fly screens are a practical and extremely functional protection against insects).

The system is designed for use in residential and public buildings, and also allows designing modern window solutions in multiple variants.

Technical Specification:

Material - aluminium / polyamide
Depth of frame - 65 mm
Depth of leaf - 74 mm
Glazing range - 4-51 mm
Maximum window sizes - single-leaf window: 1300 x 2752 mm / double-leaf window: 2200 x 2400 mm / three-leaf window: 3500 x 2400 mm

IP i+

Material - aluminium / polyamide
Depth of frame - 65 mm
Depth of leaf - 74 mm
Glazing range - 4-51 mm
Maximum window sizes - single-leaf window: 1300 x 2752 mm / double-leaf window: 2200 x 2400 mm / three-leaf window: 3500 x 2400 mm

Performance:

Thermal insulation Uf* - Uf from 1,57 W/m²K
Air permeability - Class 4; EN 12207
Windload resistance - Class C4; EN 12210
Watertightness - Class E1350; EN 12208

IP i+

Thermal insulation Uf* - Uf from 1,28 W/m²K
Air permeability - Class 4; EN 12207
Windload resistance - Class C4; EN 12210
Watertightness - Class E1350; EN 12208

*Thermal insulation is dependent on a combination of profiles and thickness of the filling.

Imperial OUT

Window system designed for designing tilt out and turn out windows.

System Imperial OUT is fully compatible with window system Imperial (they share system elements: connectors, gaskets, glazing strips).

System Imperial OUT features a faced internal surface of the frame and the sash.

Turn out windows can be fitted with two types of hinges: rotating hinges or scissor hinge; window hardware used allows tilting the top or the bottom of the window outwards; option of turn out window with the limit stop.

Available option of integrating windows with walls by using a reversing profile.

The option of bending profiles (detailed specification of profiles and detailed technical parameters of profile bending process are available in the authorisation zone of the website www.aliplast.pl).

Maximum dimensions and weights of structures in Imperial OUT system:

tilt out windows - minimum width and height of sash 500 mm, maximum width and height of sash 2000 mm, maximum weight of sash 100 kg for tilt out windows
turn out windows - minimum width and height of sash 500 mm, maximum width of sash 1500 mm, height of sash 3000 mm, maximum weight of sash 120 kg for turn out windows

System IP OUT is available in the variant with improved thermal insulation power. Available options:

IP OUT i with additional thermal insulation, at the profile-glass interface;
IP OUT i+ with additional thermal insulation between thermal spacers.

This system is very popular in Nordic countries and on the British Isles. Perfectly matching old and stylized manor houses, wood cabins or simple Scandinavian type houses. Shutters are often used with such windows.

There is the possibility of using the Flyscreen system (Flyscreens – fly screens are a practical and extremely functional protection against insects).

Technical Specification:

IP OUT

Material - aluminium / polyamide
Depth of frame - 65 mm
Depth of leaf - 74 mm
Glazing range - max 51 mm
Maximum window sizes - single-leaf window: 1456 x 2356 mm

IP OUT i+

Material - aluminium / polyamide
Depth of frame - 65 mm
Depth of leaf - 74 mm
Glazing range - max 51 mm
Maximum window sizes - single-leaf window: 1456 x 2356 mm

Performance:

IP OUT

Thermal insulation Uf* - Uf from 1,85 W/m²K
Air permeability - Class 4; EN 12207
Windload resistance - Class C5/B5; EN 12210
Watertightness - Class E900; EN 12208

IP OUT i+

Thermal insulation Uf* - Uf from 1,68 W/m²K
Air permeability - Class 4; EN 12207
Windload resistance - Class C5/B5; EN 12210
Watertightness - Class E900; EN 12208

*Thermal insulation is dependent on a combination of profiles and thickness of the filling.

Imperial SU

A door system designed for designing doors with high thermal insulation parameters.

The system is compatible with the Imperial system - thanks to adaptive profiles designs in series IP SU it can be integrated with Imperial shop windows.

The system features very good anti-burglary properties (the lock is situated far from the outer side).

Profile drainage in two variants: traditional and hidden.

The hidden sash system is preferred by designers, as it allows “hiding” windows in aluminium and glass structure. Thanks to the application of this solution, opened and fixed window segments look identical from the outside.

The system IP SU is also available in the variant with improved thermal insulation power:

IP SU i - applying thermal insulation under the glass panel.

There is the possibility of using the Flyscreen system (Flyscreens – fly screens are a practical and extremely functional protection against insects).

Technical Specification:

IP SU

Material - aluminium / polyamide
Depth of frame - 65 mm
Depth of leaf - 68 mm
Glazing range - 4-41 mm
Maximum door sizes - single-leaf window: 1300 x 2500 mm / double-leaf window: 2300 x 1839 mm

IP SU i

Material - aluminium / polyamide
Depth of frame - 65 mm
Depth of leaf - 68 mm
Glazing range - 4-41 mm
Maximum door sizes - single-leaf window: 1300 x 2500 mm / double-leaf window: 2300 x 1839 mm
