The system offers freedom of design of very large internal surfaces of division walls. With glass modules, the structures constructed according to the system provide optical enlargement of the building interior, ensuring safety by the arrangement of fire zones in buildings.
Free valuation within 24h
Prepare the specification, fill in the form and within 24 hours we will send you a quoteFree valuation

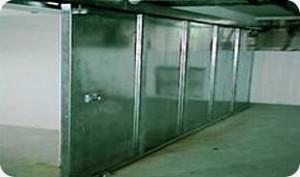

The latest approach to fire barriers. As there are no vertical mullions required, it is possible to construct an entirely transparent fire protection barrier up to 4200 mm in height and along an unlimited length.
The glass pane joint is made using silicon grout with a width of 2 mm. The grout is black or grey.
Because of the way the fireproof doors are opened, we distinguish the following types:
- sliding one way
- sliding both ways
The joint can be masked with decorative elements.
An essential feature of the system is the possibility of finishing walls on the perimeter with any material used for constructions purposes, such as wood, aluminium, stainless steels and gypsum.
This is the only solution, available on the market, which is suitable to construct fire-rated non-transparent glazing in any RAL or NCS colour without the need to bond another glass pane, which considerably reduces construction costs. It is also possible to construct a vault wall and bond up functional glass.
In addition, it is possible apply fire-rated or unclassified doors.
All-glass fire barriers are available in the fire classes EI 30, 60 and 90.
