Aluplast Ideal 4000 Casement

IDEAL 4000 casement is an example of a group of window systems that open outwards (so-called "Bevelled/chamferred"), are characterized by a flat rebate with one or two oblique planes. The windows in these systems are also often installed in wide residential construction as well as in market segments related to public tenders and architectural services.

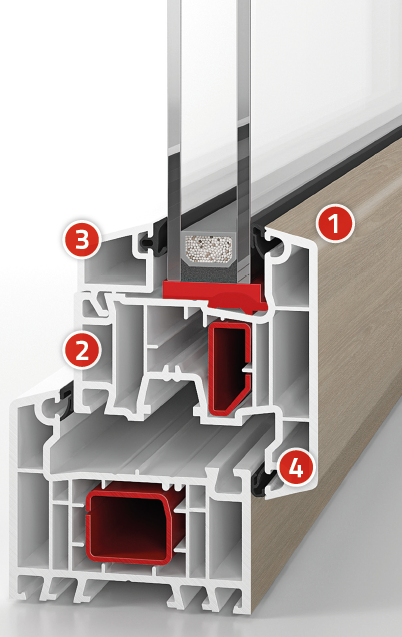

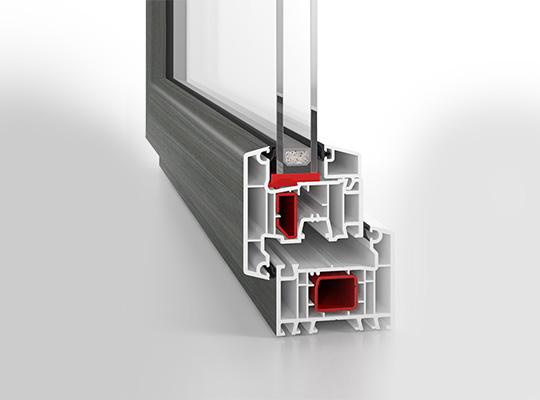

70mm Thermally Efficient five chamber profile

IDEAL 4000 boasts five chambers (front to back) at the core of its design philosophy.

Having two chambers either side of the reinforcement chamber greatly reduces thermal bridging and provides a superb thermal insulation performance.

Acoustic insulation or noise reduction is also much improved so windows manufactured from IDEAL 4000 provide the householder with a greater level of all round comfort and well being.The five chamber construction and resulting thermal performance means that IDEAL 4000 is well prepared for any changes to specifications or building regulations calling for enhanced thermal efficiency.

A+ WER BFRC

The use of a main profile depth of 70mm allows the easiest installation into most building details; enabling installers to fix back to the internal plaster line and still cover any remaining paint lines on the external substrate.

A profile depth of 70mm also allows for greater flexibility with regard to glazing thickness. IDEAL 4000 permits glazing of 28mm or 24mm double and 36mm or 40mm triple glazed high performance units with the same consummate ease.

The profile design incorporates lugs to locate the reinforcement profiles. Orientation options are provided for steel reinforcements that allow optimum selection for economic production and facilitate insertion of reinforcement profiles prior to welding of the PVC-U sections.

TECHNICAL CHARACTERISTICS:

• Frame installation depth: 70mm
• Number of chambers: 5
• Glazing: Standard 24mm to 40mm triple glazed sealed units
• Sealing system: double (2 seals)
• Reinforcement system: steel
• Uf heat transfer coefficient: 1,3 W/m2K
• Bonding inside technology: yes
• Flush sash option
• Extensive range of woodgrains, colours and foils including flat colour options
• Available in woodec and aludec our ultra-life-like woodgrain and aluminium finishes
• Can be manufactured to PAS24, Part Q and Secured by Design specification
• Contemporary urban SquareLine sightline
