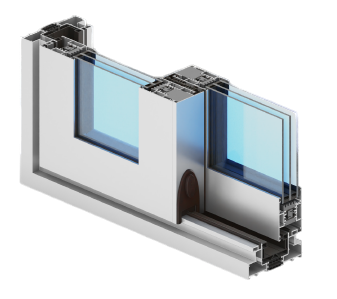

Aliplast Visoglide Plus

System with increased thermal insulation performance used to design slide or lift-and-slide construction.

Available options of the system: sliding and lift-and-slide; available versions of the system: monorail.

Extremely narrow labyrinth stud in sliding and lift-and-slide leaves: 34 mm wide.

Possible combinations of two, three, four, and six elements on a two- or three-rail frame.

There is the possibility of using the Flyscreen system and Insect System (fly screens are a practical and an extremely functional protection against insects).

A wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodised colour (Qualanod 1808), bi-colour.

Technical Specification:


VG Plus

• Material - aluminium/thermal insulation
• Depth of frame - 118/142/184 mm
• Depth of leaf - 51 mm
• Glazing range - 6-36 mm; monorail option: 18-60 mm
• Weight of leaf - up to 250 kg in sliding option / up to 200 kg in lift-sliding option
• Type of doors - sliding, lift-sliding

Performance:


VG Plus

• Thermal insulation Uf* - Uf from 2,1 W/m²K
• Air permeability - Class 4; EN 12207
• Windload resistance - Class C3/B4 (1200 Pa); EN 12210
• Watertightness - Class 9A; EN 12208

*Thermal insulation is dependent on a combination of profiles and thickness of the filling.
