Aluplast Smart Slide Neo

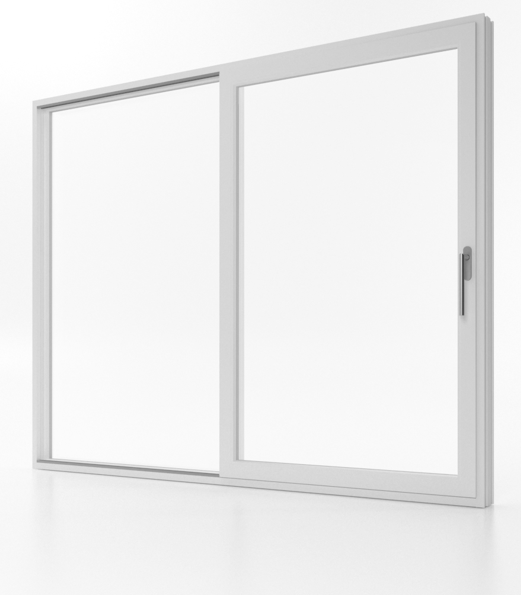

Smart-slide NEO sliding door is a new solution in the sliding door segment, providing an attractive alternative to PSK/PATIO type patio doors. Its secret lies in simplicity and the use of proven solutions.

This is a great option for both single-family housing and public buildings, where easy operation and reliability are expected from patio doors.

Panoramic views - even more light!

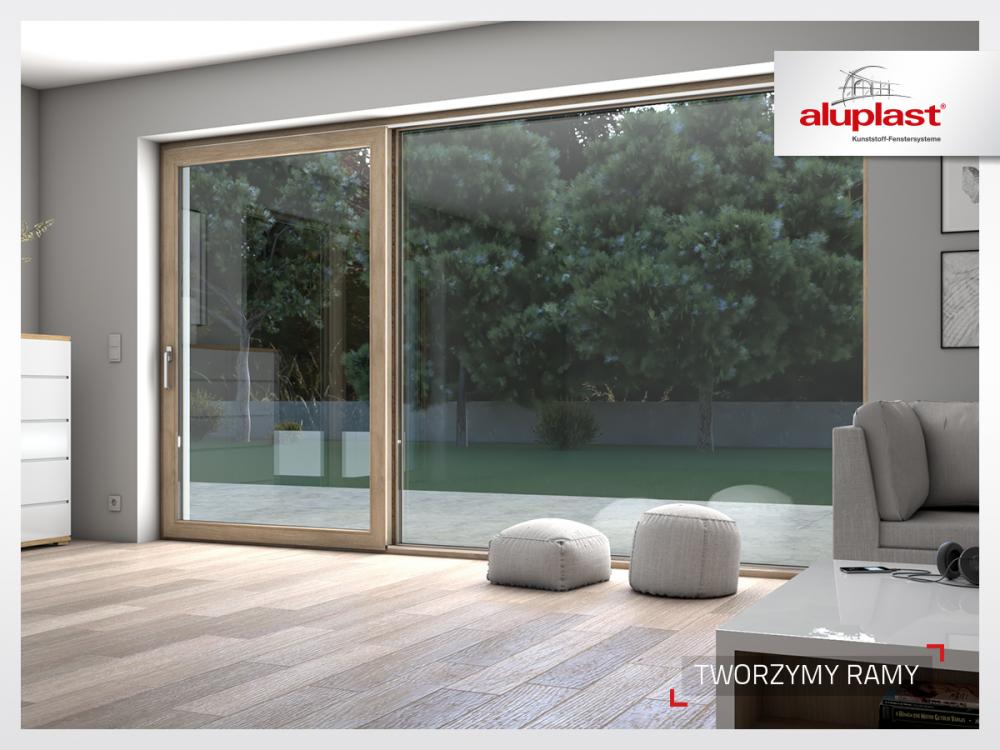

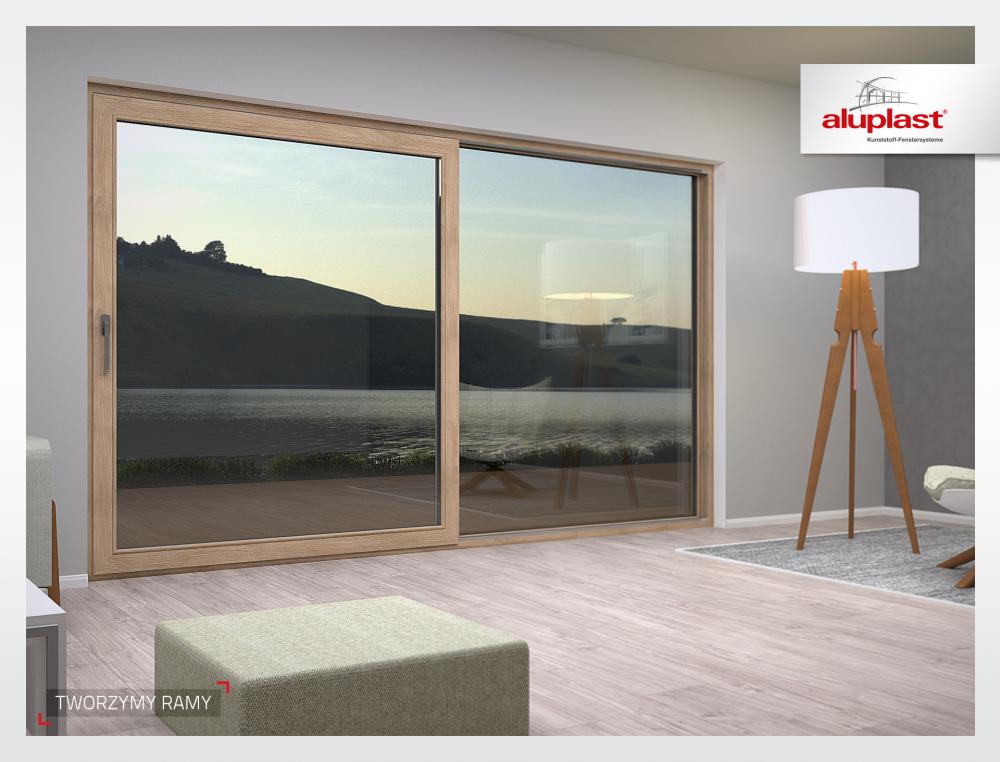

The panoramic view afforded by large glass surfaces is a timeless trend that visually enlarges the space and connects it with the outside world. Smart-slide NEO sliding doors allow the creation of glazed structures measuring 6 x 2.5 meters.

Configuration types

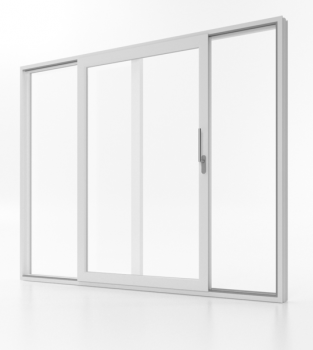

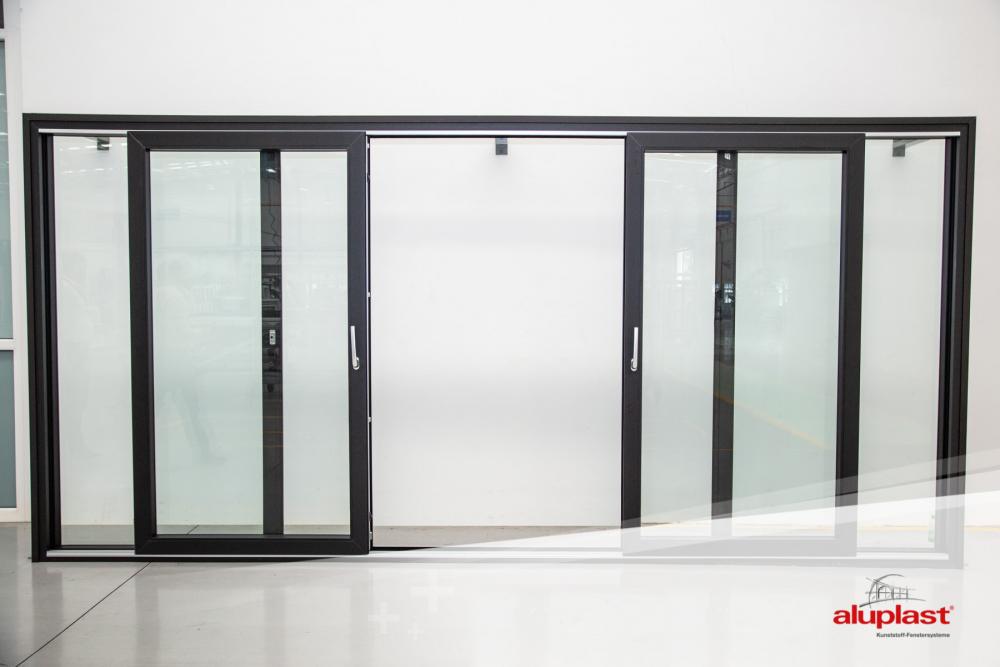

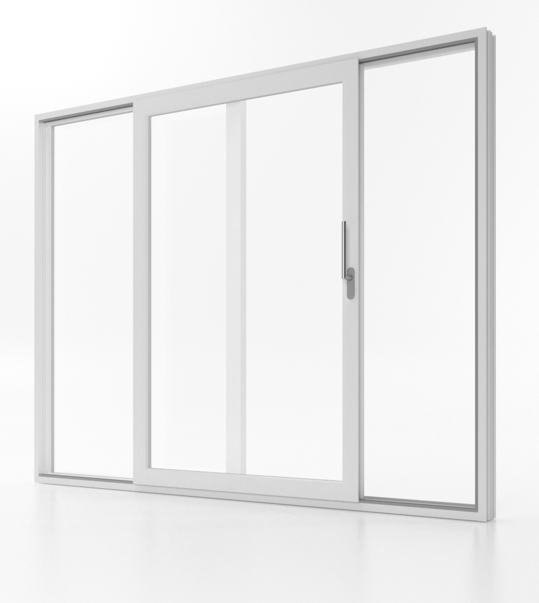

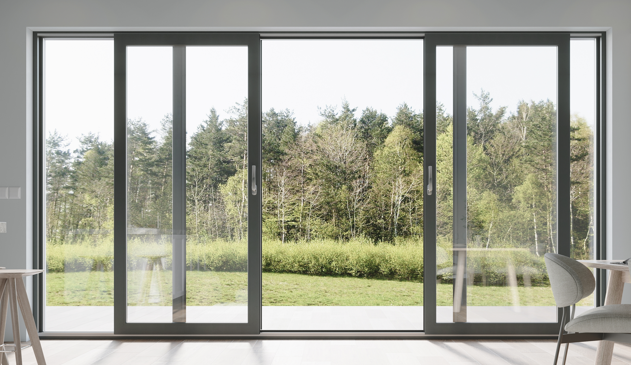

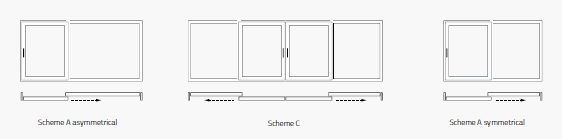

They can be configured in Configuration A (symmetrical or asymmetrical division) or Configuration C, with two panels sliding to the sides.

Intuitive operation - easy sliding and closing

The innovative closing mechanism used in the Smart-slide NEO door allows for easy operation, similar to the solutions used in lift-and-slide HST doors, providing smooth, effortless window opening and closing.

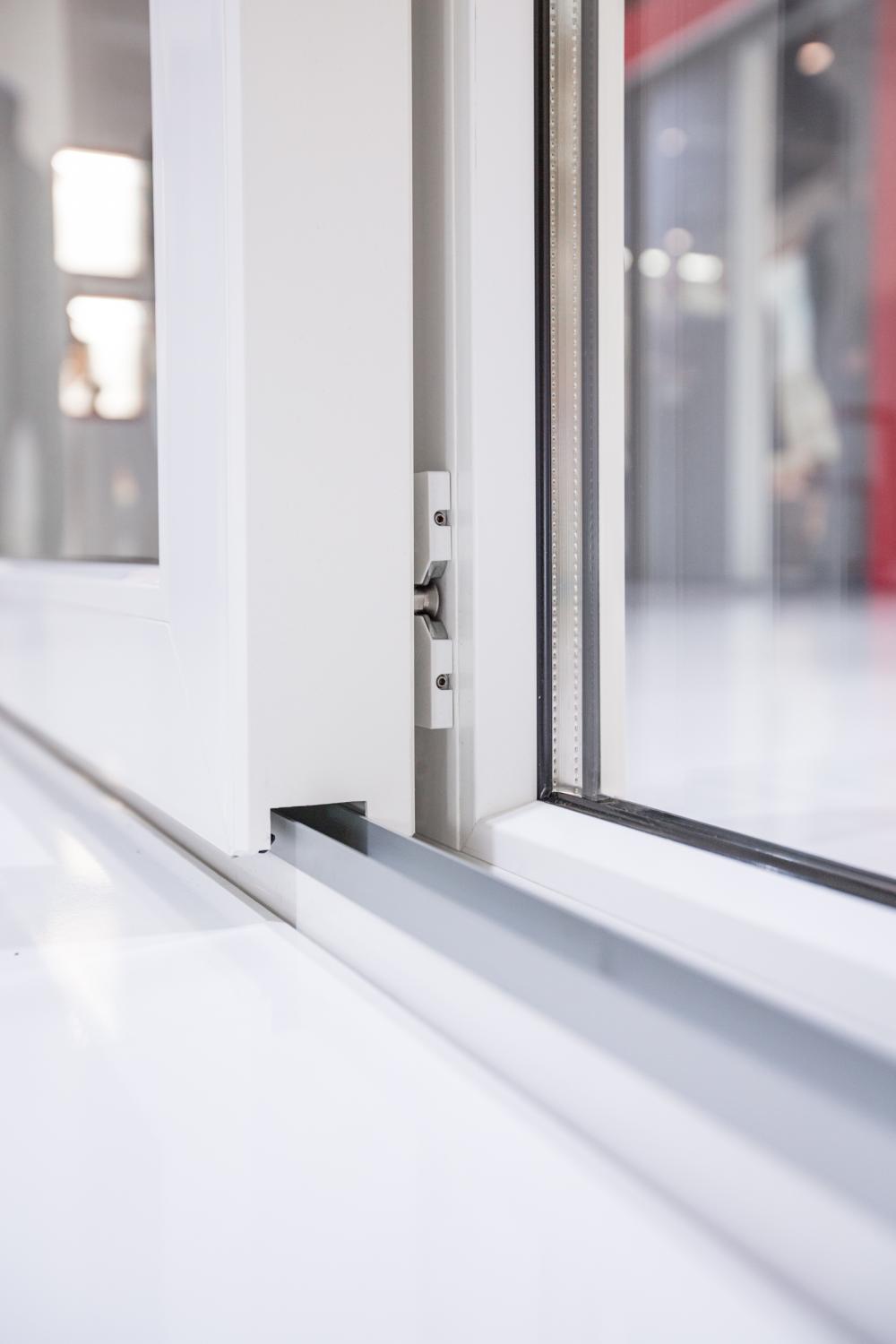

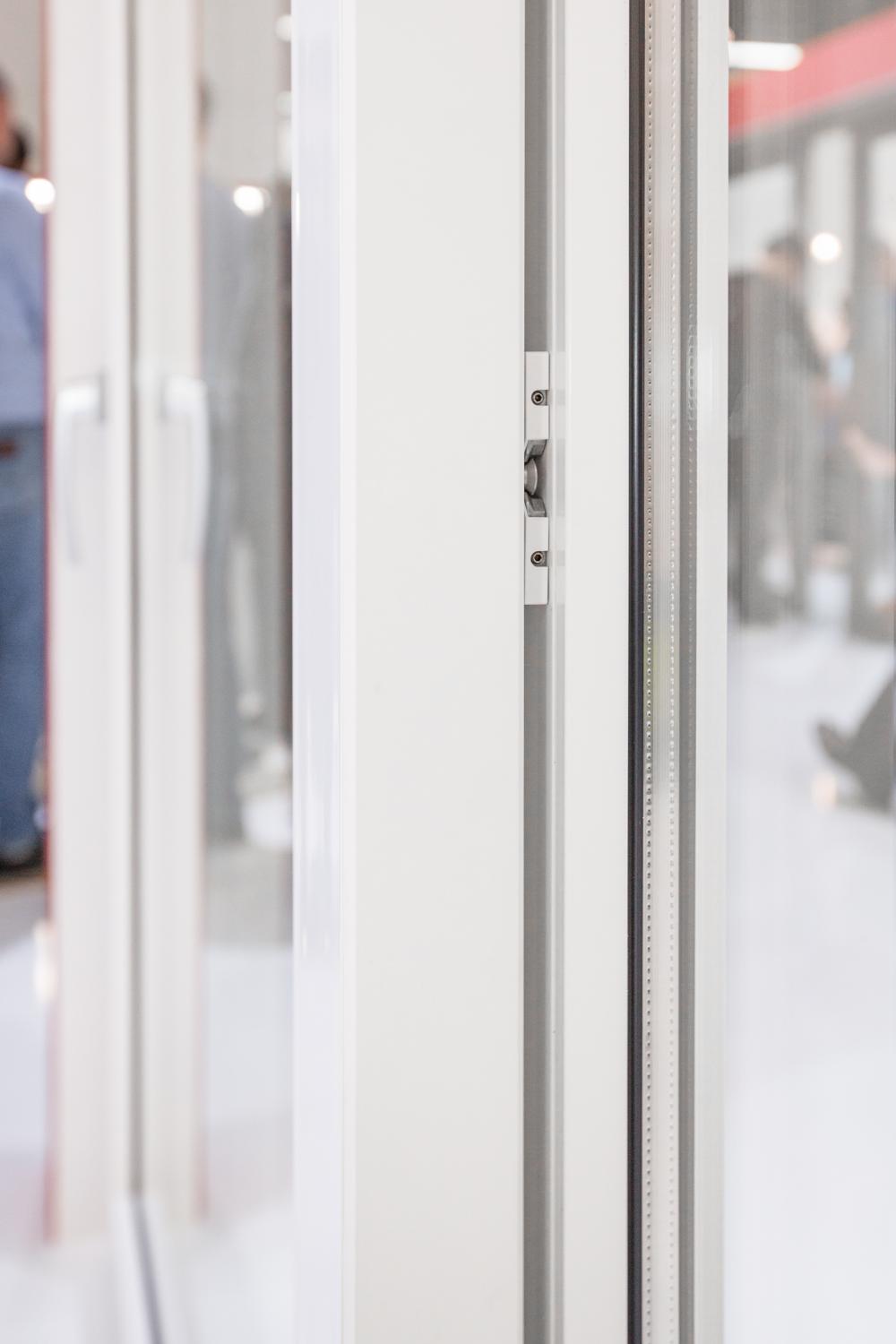

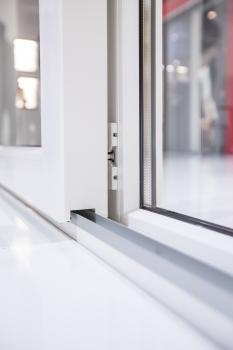

Specialized window hardware ensures that the sash, once unlocked, slides freely and smoothly on the bogies relative to the fixed panel.

Versatility

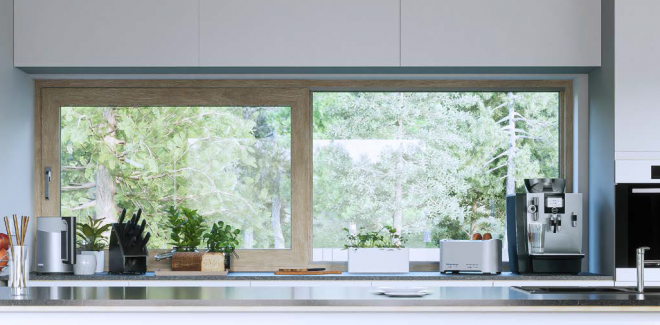

Smart-slide NEO is not limited to patio doors alone; it is also an ideal solution for kitchens where cabinetry may restrict the functionality of traditional casement windows.

By incorporating Smart-slide NEO sliding windows, you can achieve expansive glazing while maximizing space efficiency.

Smart-slide NEO windows are also lightweight and easy to operate. The sash smoothly slides on bogies when opened. The option of locking at any position is a great alternative to traditional window restrictors and limiters.

Technical characteristics

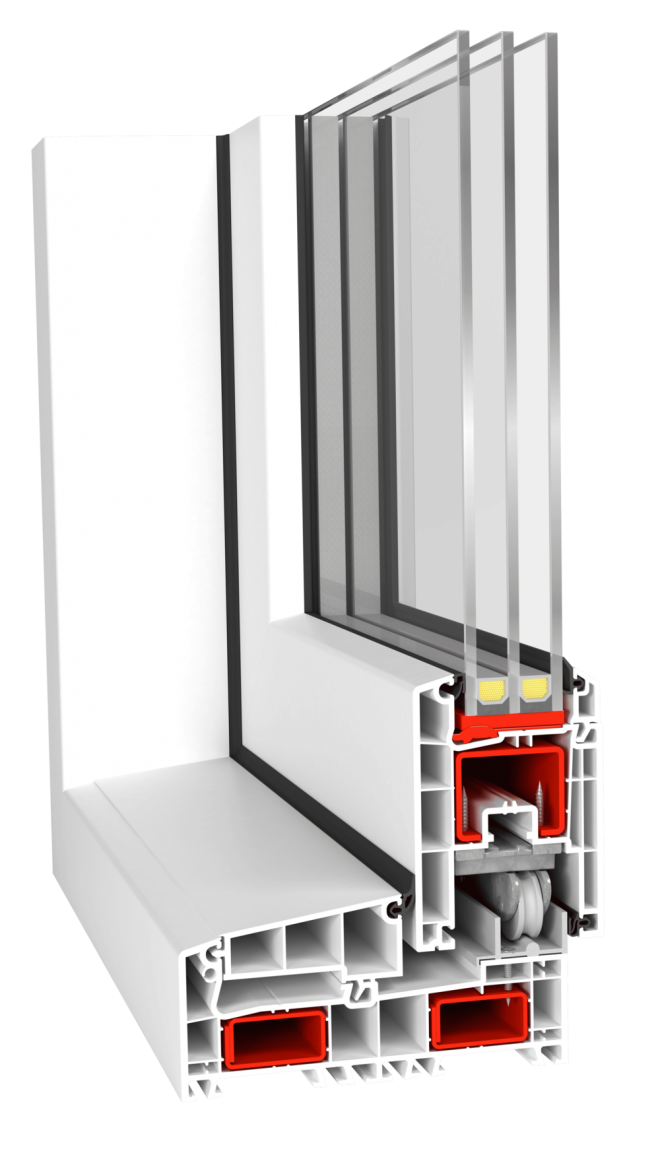

• Frame installation depth: 154 mm
• Sash profile depth: 78 mm
• Maximum construction width: 6000 mm
• Maximum construction height: 2500 mm
• Maximum glazing width: 52/54 mm
• Uf heat transfer coefficient: 1.3 W/m²K
• Possible opening configurations: A, C
• Hidden hardware mechanisms: Yes
• Extensive range of woodgrains, colours and foils including flat colour options
• Available in woodec and aludec our ultra-life-like woodgrain and aluminium finishes
