Aluplast NEO

The NEO window system is a new dimension in window design, able to meet the highest energy efficiency requirements and the latest design trends. Simple, symmetrical, cubist shape is the hallmark of the system.

Free valuation within 24h

Prepare the specification, fill in the form and within 24 hours we will send you a quote

Simple angles with strong architectural shape but with lightness of design. The system offers two design lines: a minimalist, classic non-flush version, and a designer version with a flush design, which offers slim sightlines similar to an aluminium window.

Synergy of technologies

Foam inside - The innovative technology of introducing polyurethane foam into the profile chambers makes it possible to achieve extremely high thermal insulation values.
Safetec inside - A special extruded centre rebate constitutes a barrier when trying to reach the fittings and force the sash. A third, internal seal adheres to the rebate, which ensures better tightness of the entire structure and improves thermal and acoustic properties.
Bonding inside - The adhesive layer creates a strong bond between the glazing unit and the profile, around the entire perimeter of the window. This increases the stiffness of the entire structure and resistance to burglary.

Technical Characteristics:

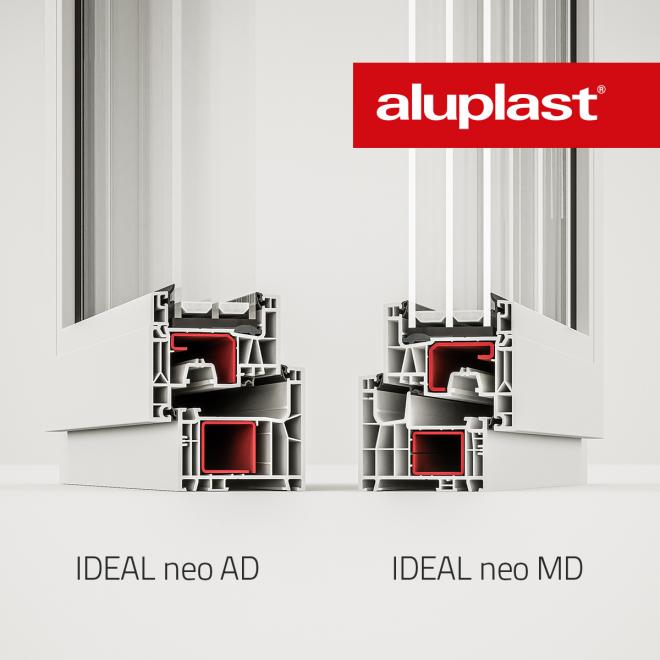

Ideal Neo AD

Profile depth 76 mm
Frame/sash combination width: 110/115 mm
MAximum glazing width: 54 mm
Uf heat transfer coefficient: 1.2 W/m²K
Uw heat transfer coefficient*: 0.79 W/m²K
Available combination design: non-flush
Sealing system: double (2 seals)
Number of chambers: sash 6, frame 5
Reinforcement system: steel
Extensive range of woodgrains, colours and foils including flat colour options
Available in woodec and aludec our ultra-life-like woodgrain and aluminium finishes

*value estimated for a referential window 1230x1480 mm ( with Ug = 0,5 W/m²K glazing unit)

Ideal Neo MD

Profile depth 76 mm
Frame/sash combination width: 110 mm
MAximum glazing width: 54 mm
Uf heat transfer coefficient: 1.1 W/m²K
Uw heat transfer coefficient*: 0.76 W/m²K
Available combination design: non-flush
Sealing system: triple (3 seals)
Number of chambers: sash 6, frame 5
Reinforcement system: steel
Extensive range of woodgrains, colours and foils including flat colour options
Available in woodec and aludec our ultra-life-like woodgrain and aluminium finishes
