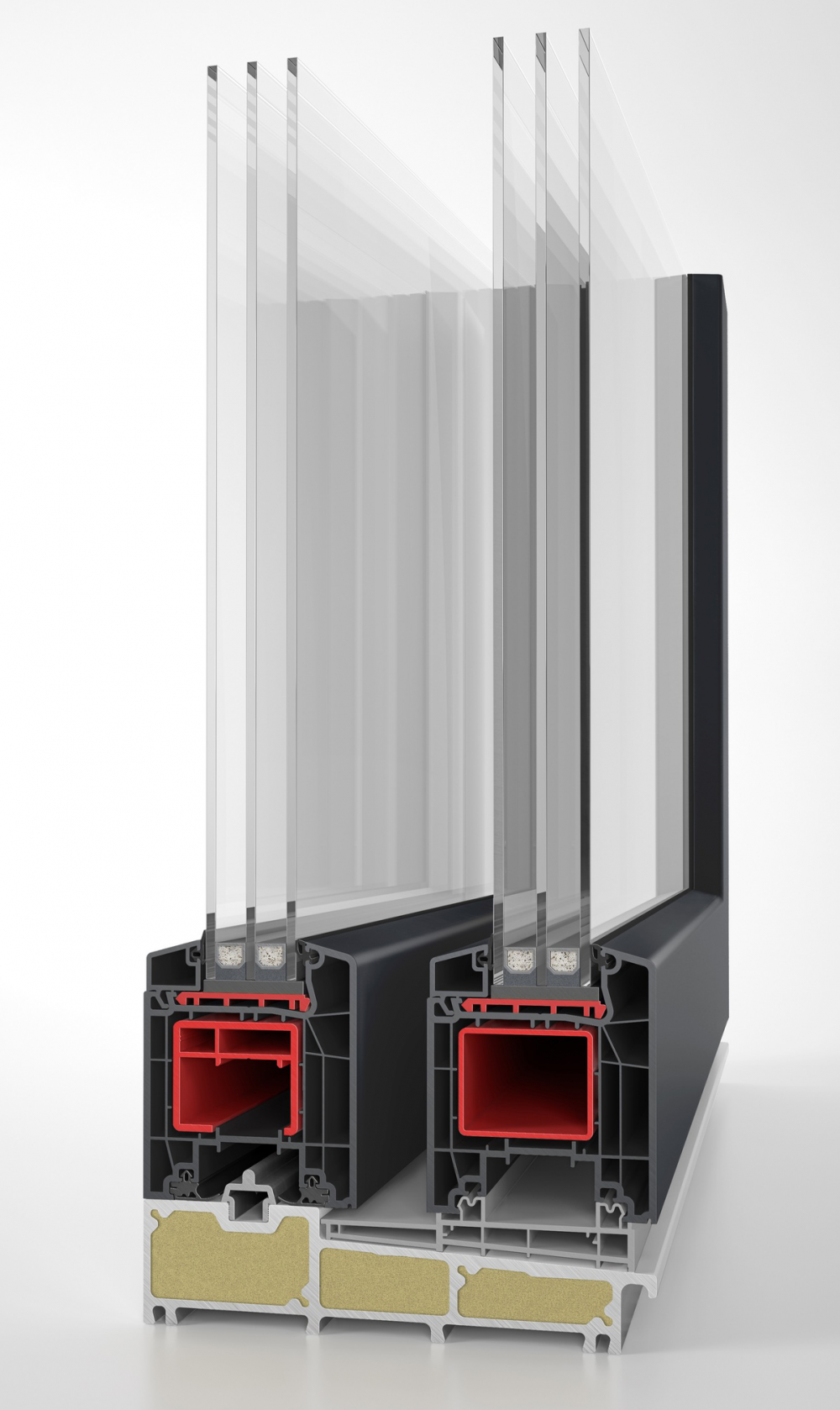

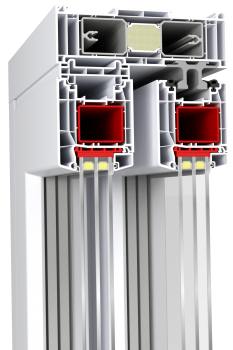

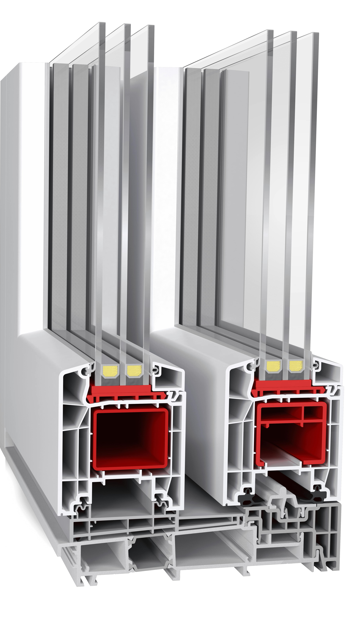

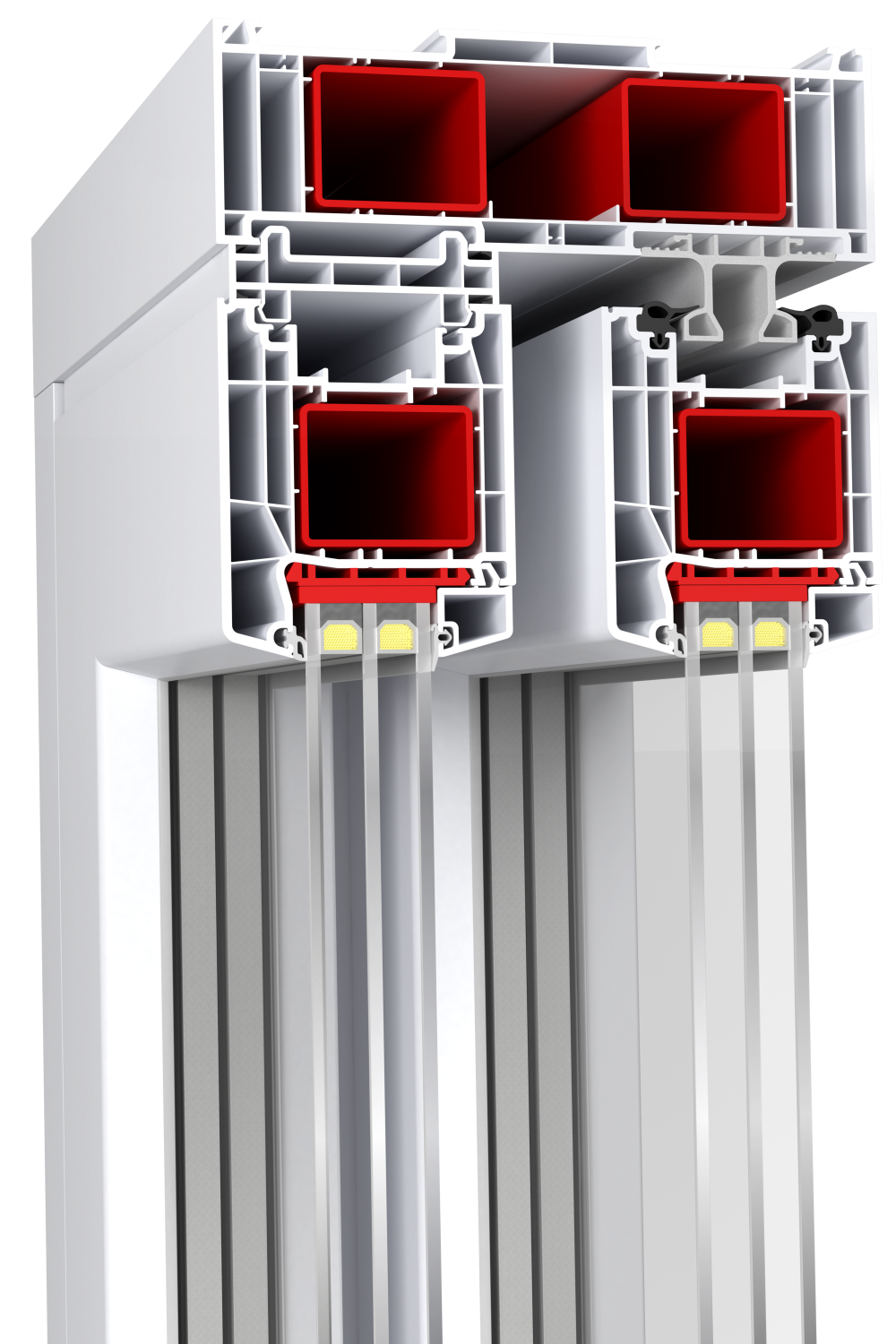

Aluplast HST 85MM

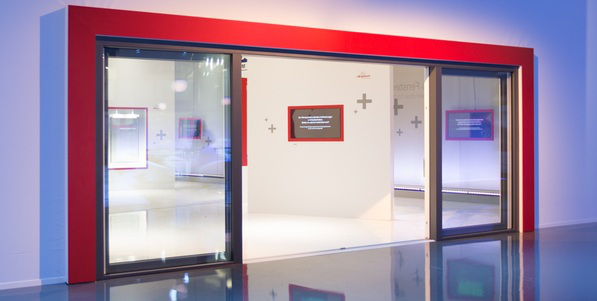

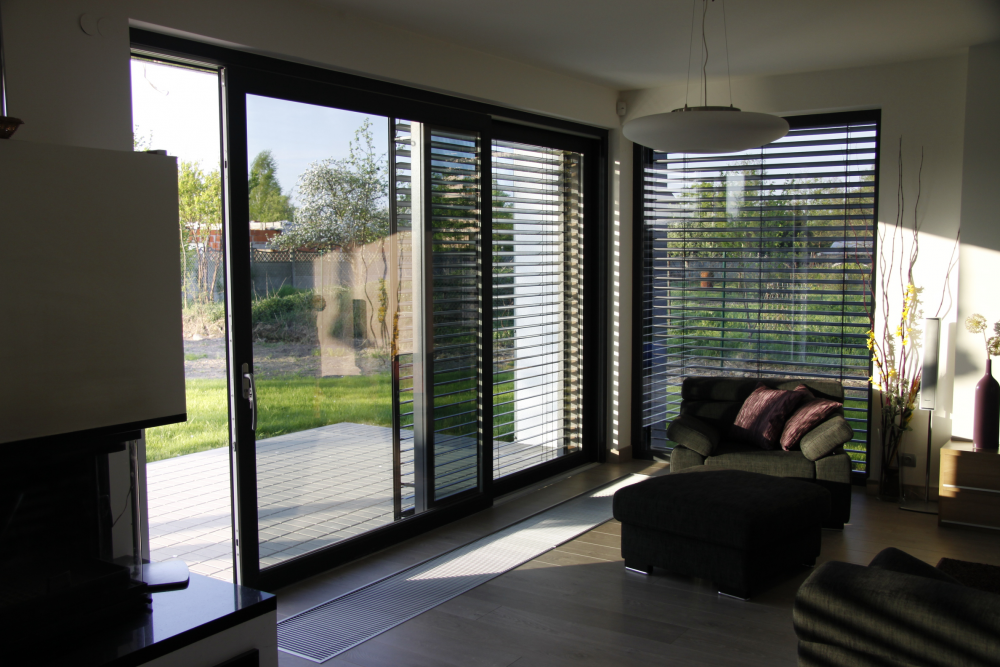

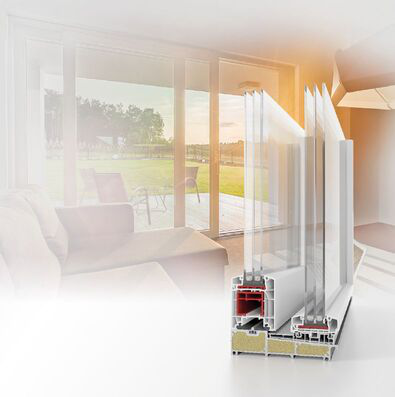

HST sliding doors are window structures that allow for large-scale glazing, providing excellent ease of use. Sliding terrace windows blur the boundary between the home and the garden. This provides excellent natural light for interior spaces and visually adds spaciousness.

One of the undeniable advantages of this type of terrace door is the range of possible dimensions. The width of the sash can be between 800 mm and 3200 mm and the height can be up to 2700 mm in white, which allows to create even more than six meters of glazing.

Create your space

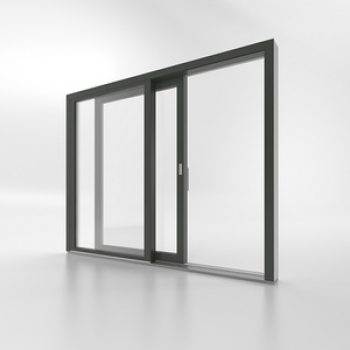

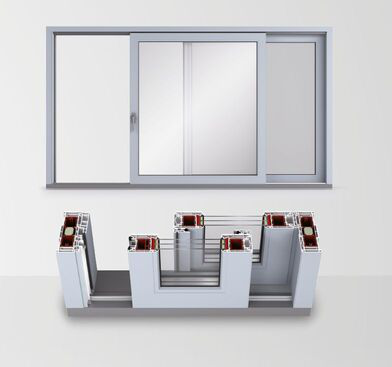

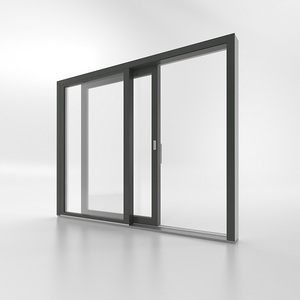

HST 85 mm lift-and-slide doors can come in at least several different versions and arrangements of sashes and non-opening parts.

The most popular HST door layouts are 2-quarter versions – where one or both sashes are movable, or 4-quarter versions – where two central or all sashes are movable.

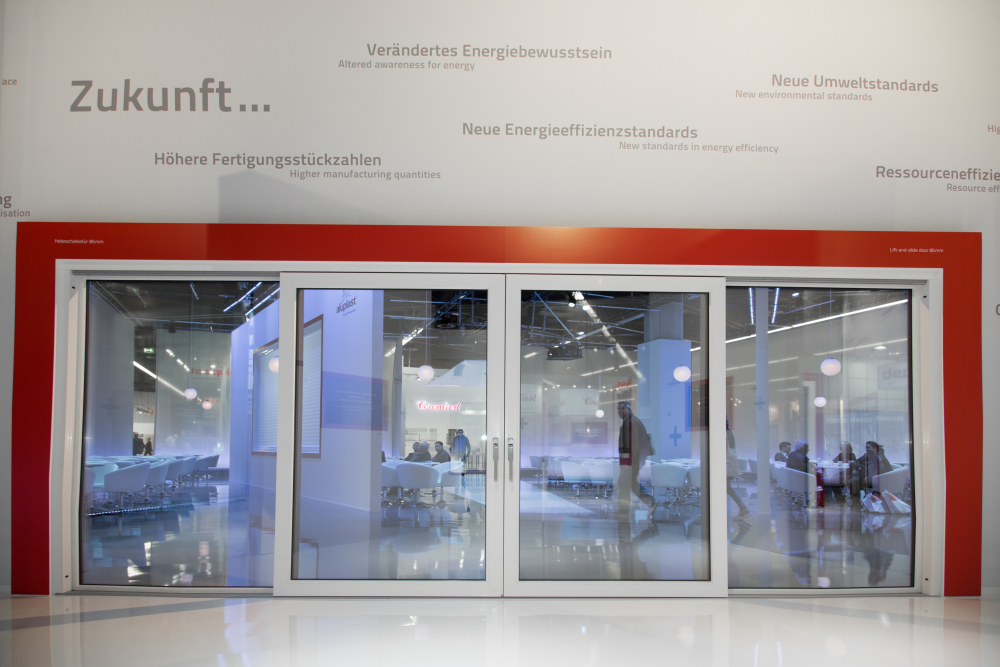

HST doors are a modern and safe solution, designed to eliminate ubiquitous barriers.

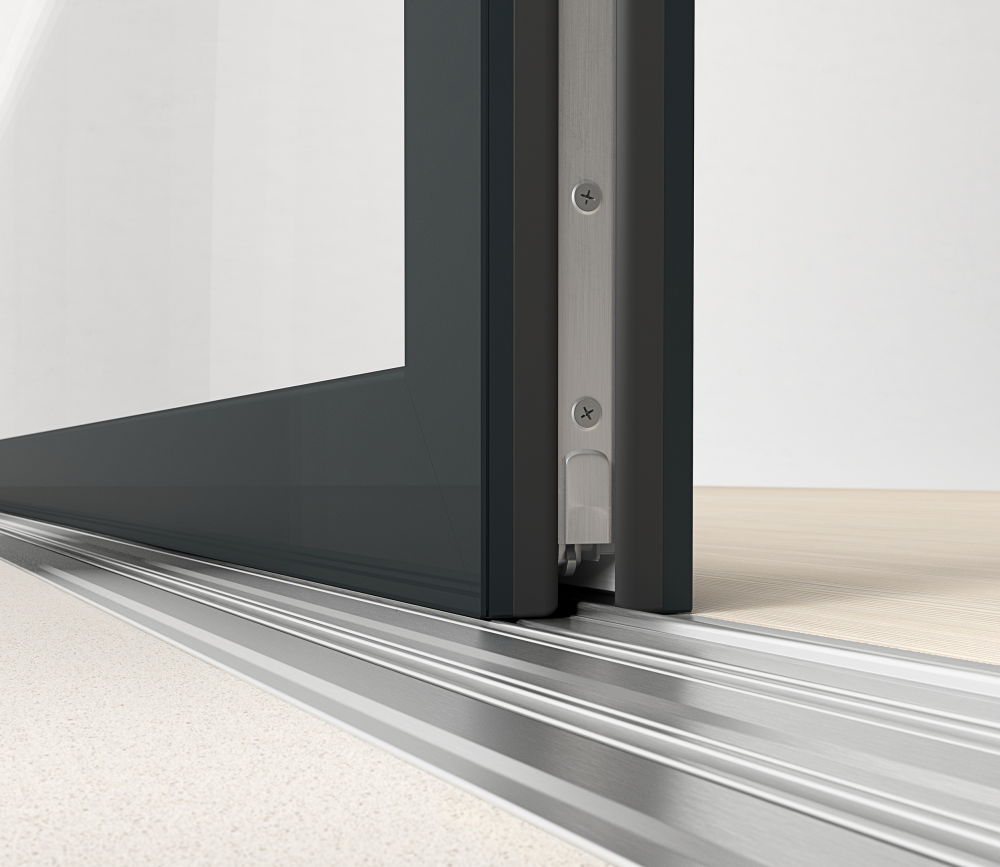

The low door threshold with a height of 48 mm, which can be recessed from the side of the room in its entire height, meets the requirements for architectural barrier-free construction and allows trouble-free entry and exit.

Thanks to special overlays, it is also possible to level the threshold with the floor surface and thus completely eliminate architectural barriers.

TECHNICAL CHARACTERISTICS

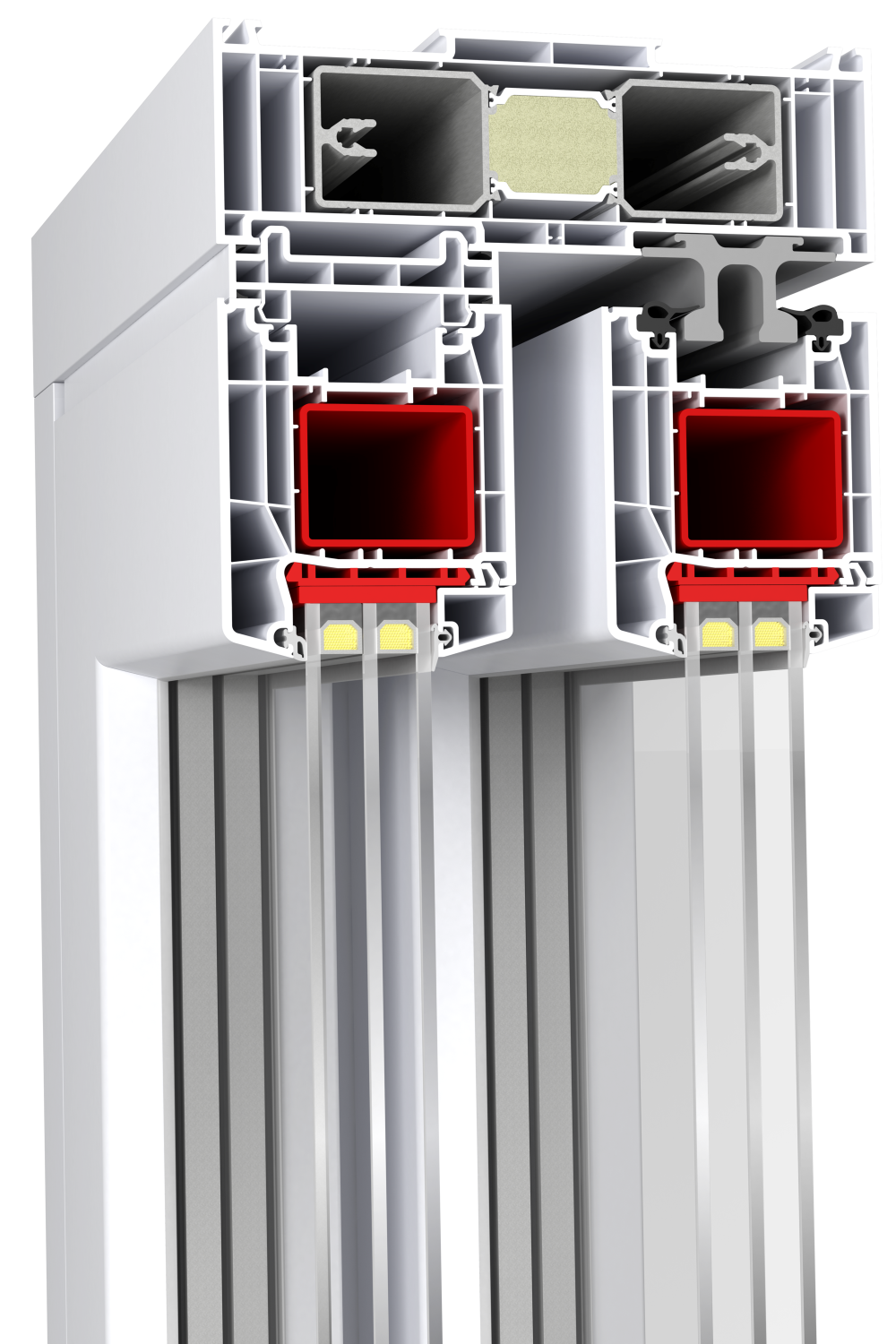

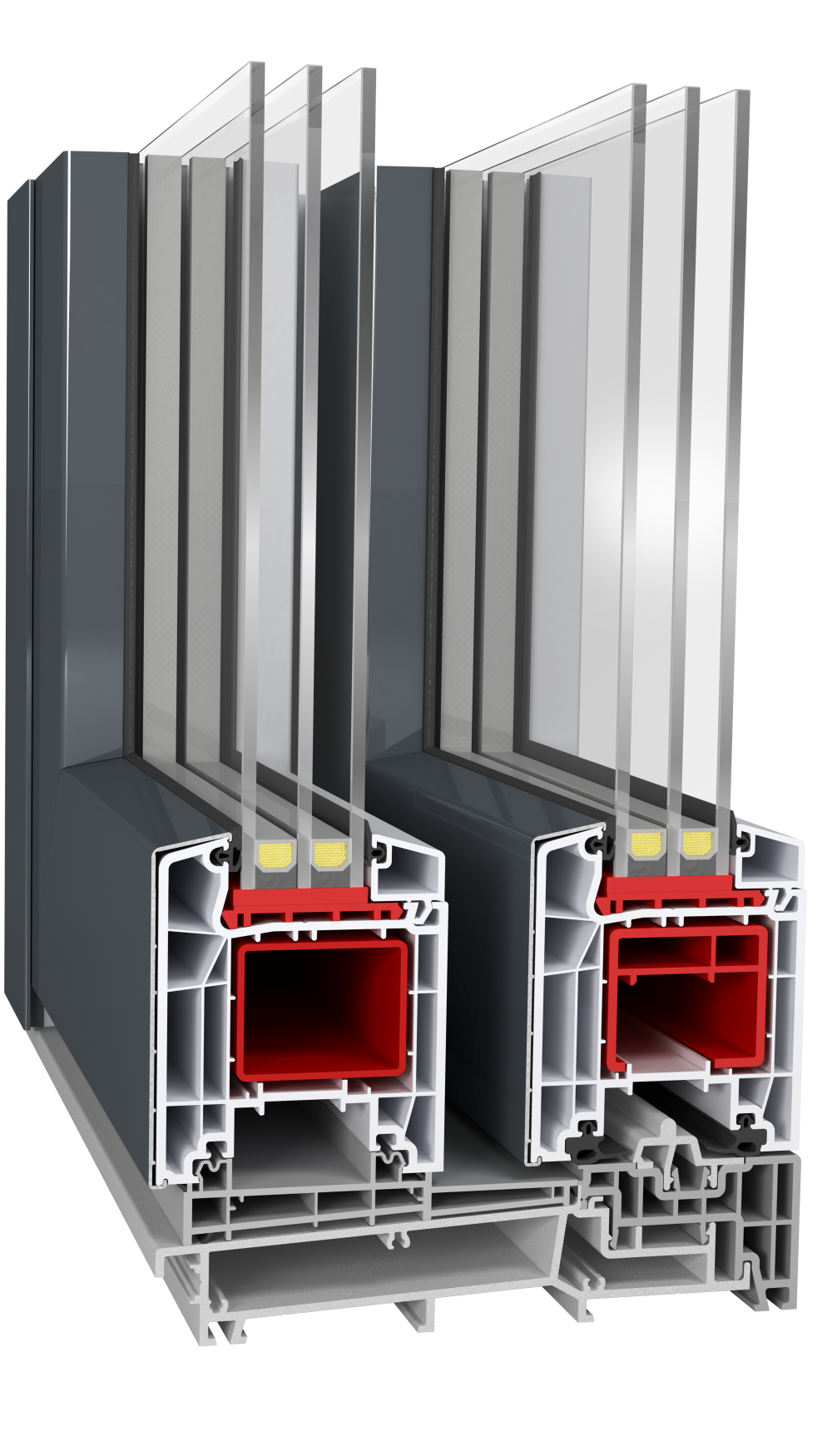

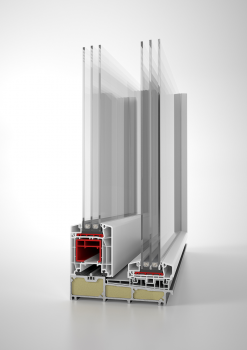

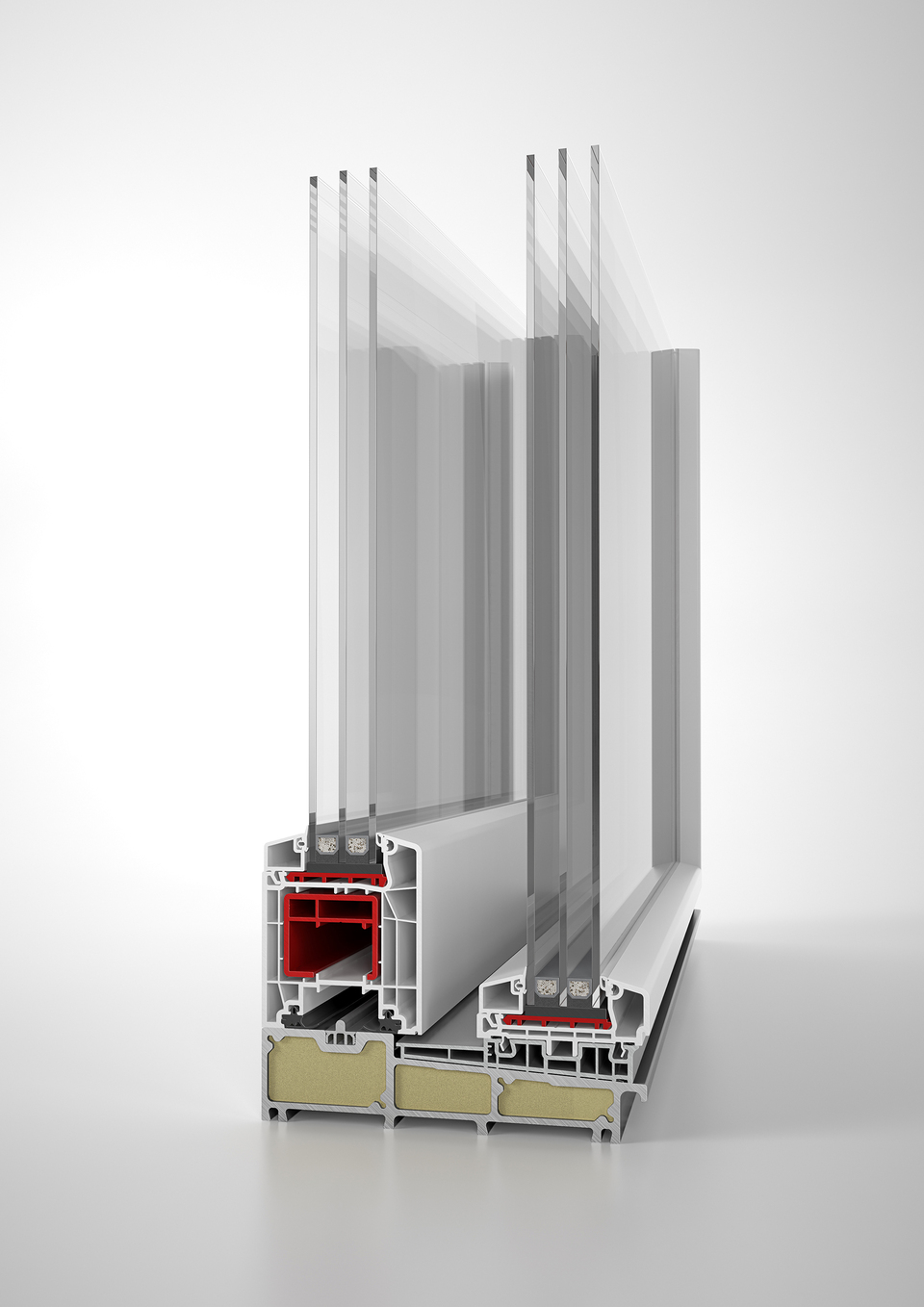

• Frame installation depth: 197 mm

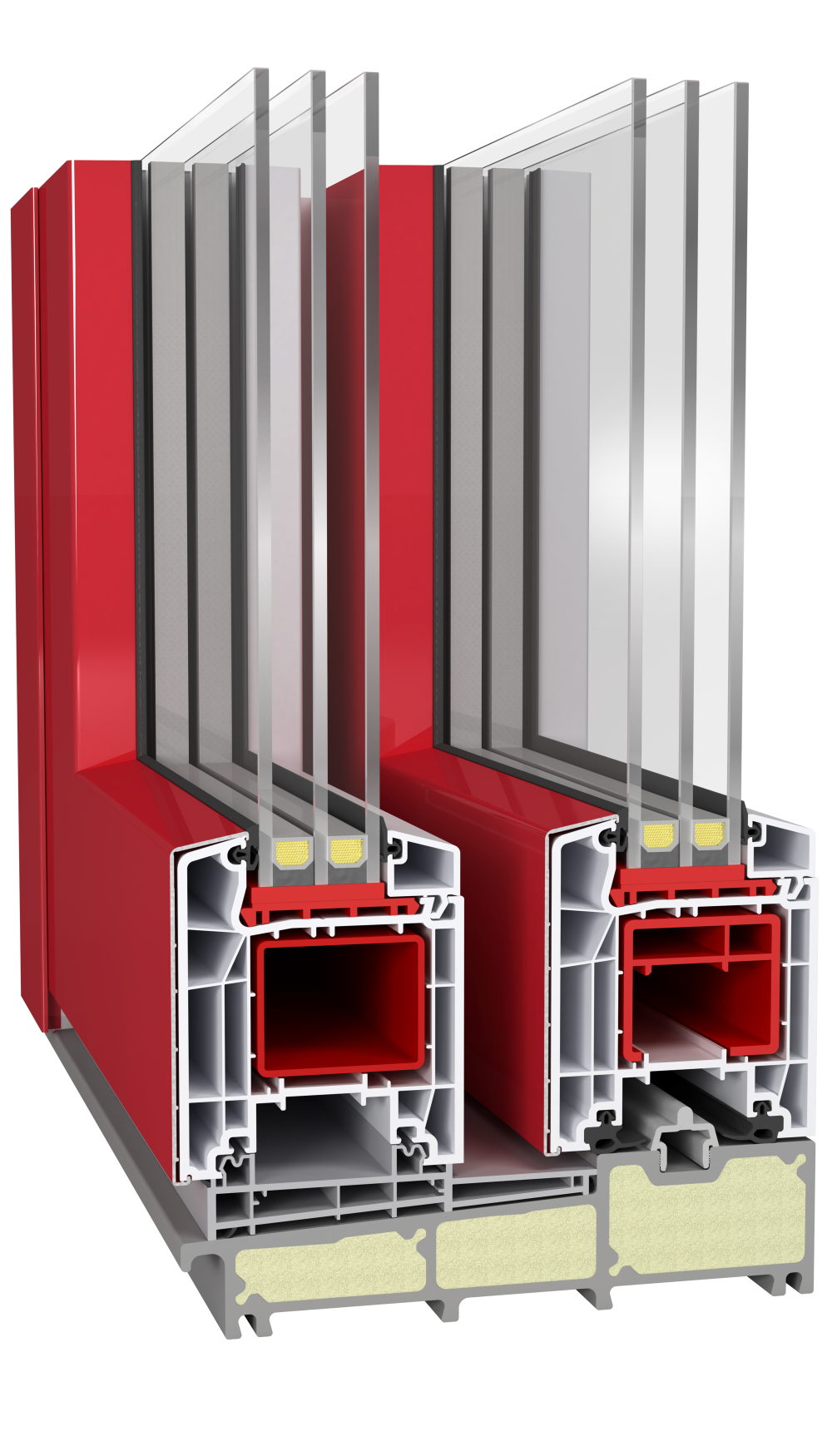

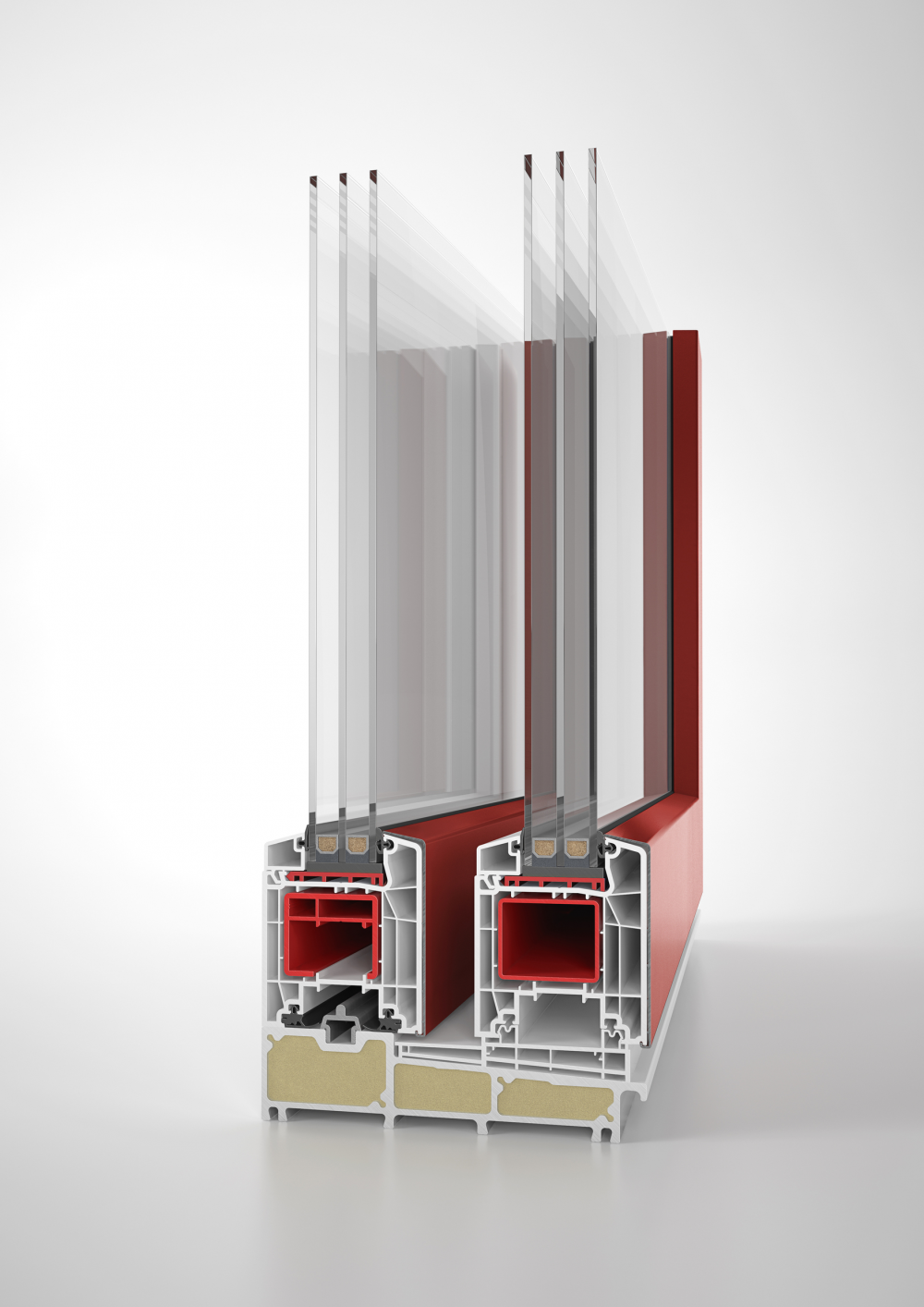

• Sash profile depth: 85 mm
• Hidden hardware mechanisms: yes
• Uf heat transfer coefficient: up to 1.1 W/m²K
• Uw heat transfer coefficient: up to 0,63 W/m²K
• Maximum construction width: 6500 mm
• Maximum construction height: 2700 mm
• Maximum glazing width: 51 mm
• Possible opening configurations: A, C, D, F

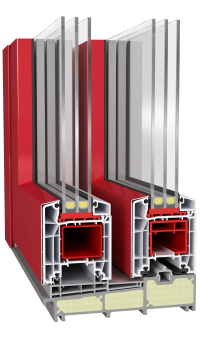

• Extensive range of woodgrains, colours and foils including flat colour options
• Available in woodec and aludec our ultra-life-like woodgrain and aluminium finishes
