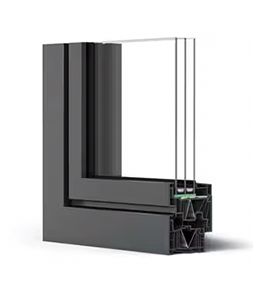

Rehau Artevo

The symbiosis of the proven high-tech material RAU-FIPRO X and outstanding REHAU technological expertise allows the material’s full potential to be used. This results in all-round optimal performance with the most efficient use of materials in a system which is superior in every respect. Or as we call it: ARTEVO.

Strength across the board

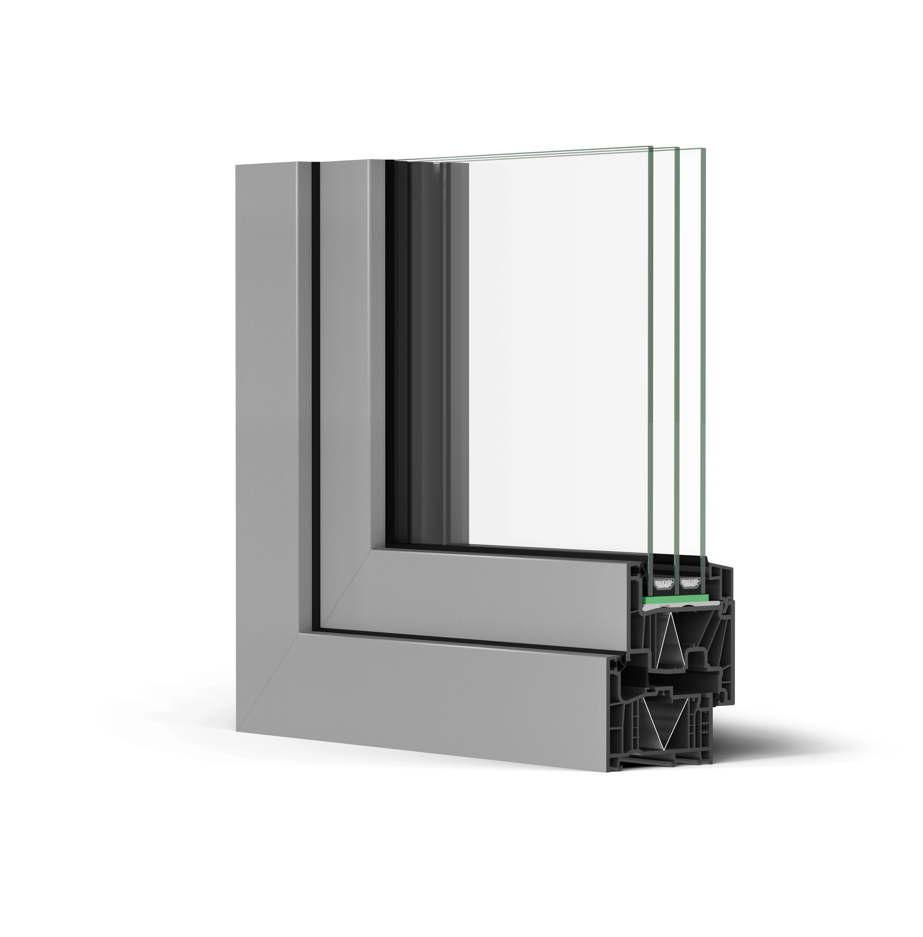

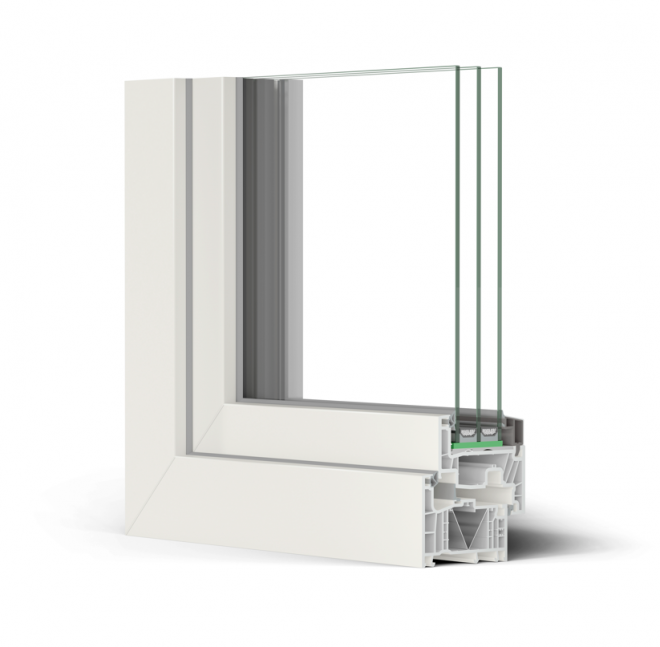

When materials have to meet the highest requirements for stability and performance, fibre-reinforced composites are always used. RAU-FIPRO X also combines the top properties of plastic and glass fibre to create a unique material. The integration of the fibre composite material in the entire cross-section of the ARTEVO window profiles ensures a completely even and reliable load transfer.

No risk of heat loss - Energy savings of up to 78%

The majority of ARTEVO’s elements do not require steel reinforcement, meaning that there is no risk of thermal bridges which lead to heat loss. By avoiding use of steel, ARTEVO profiles achieve Uf values of up to 0.97 W/(m²K). Large glass surfaces are also suitable for generating solar energy.

LowE profile technology – taking energy efficiency to a new level

ARTEVO max offers additional, innovative REHAU LowE profile technology. By using LowE film in the frame and sash, Uf values as low as 0.81 W/(m²K) can be achieved. In combination with triple glazing, they achieve amazing Uw values as low as 0.61 W/(m²K) and enable energy savings of up to 78%.*

* Reduction in energy loss associated with replacing old wooden/plastic windows built in the 1980s (Uf = 1.9; Ug = 3.0) with windows with ARTEVO profiles (Uf = 0.84; Ug = 0.4), window size 123 x 148 cm.

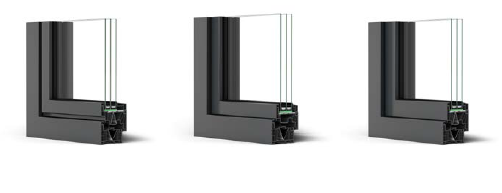

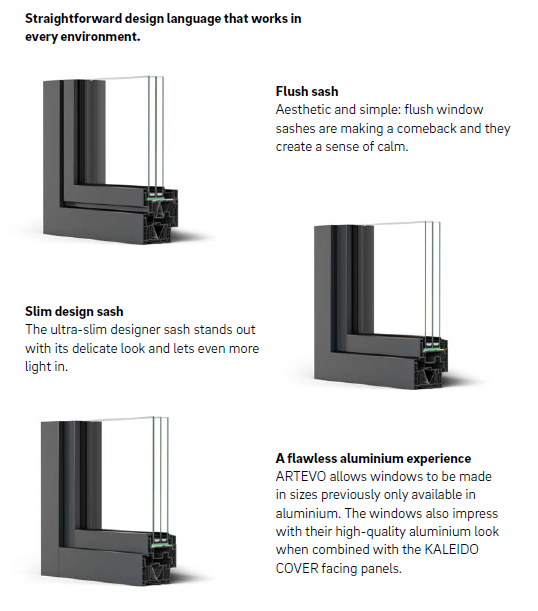

Strikingly subtle design

Dimensions that could previously only be achieved with aluminium, clean lines and a high-quality look enable sophisticated architectural choices.

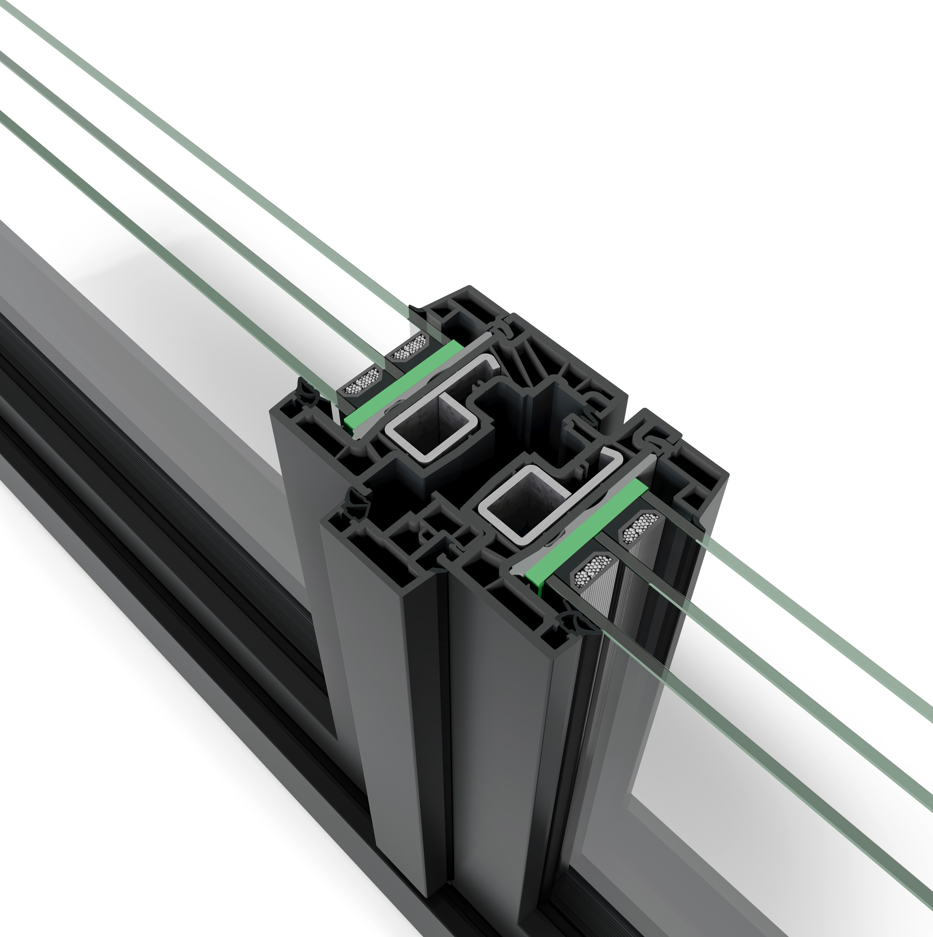

Clear, angular contours ensure unbeatable aesthetics. Extra-narrow profiles and the slim middle section make the glass surfaces even larger, giving rise to new architectural options with a maximum of natural light.

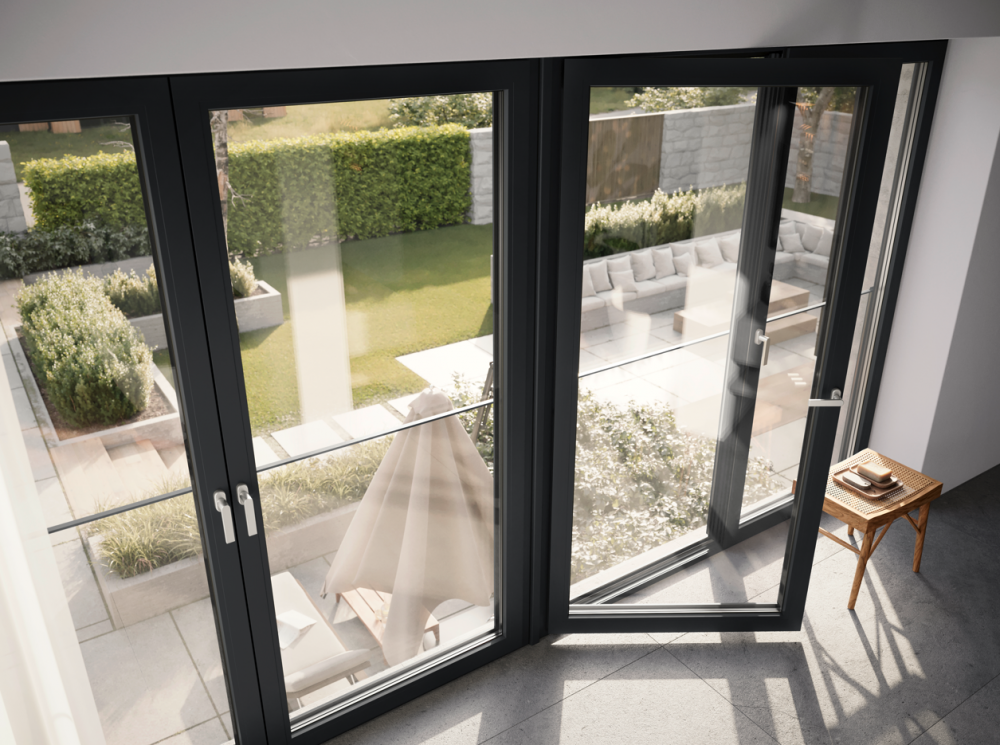

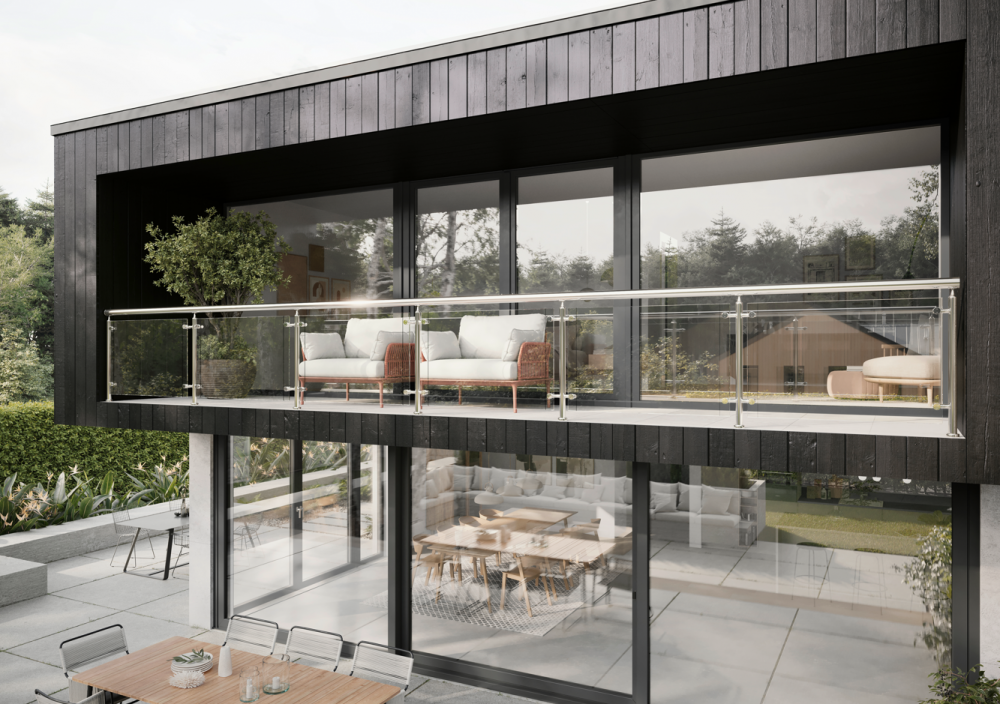

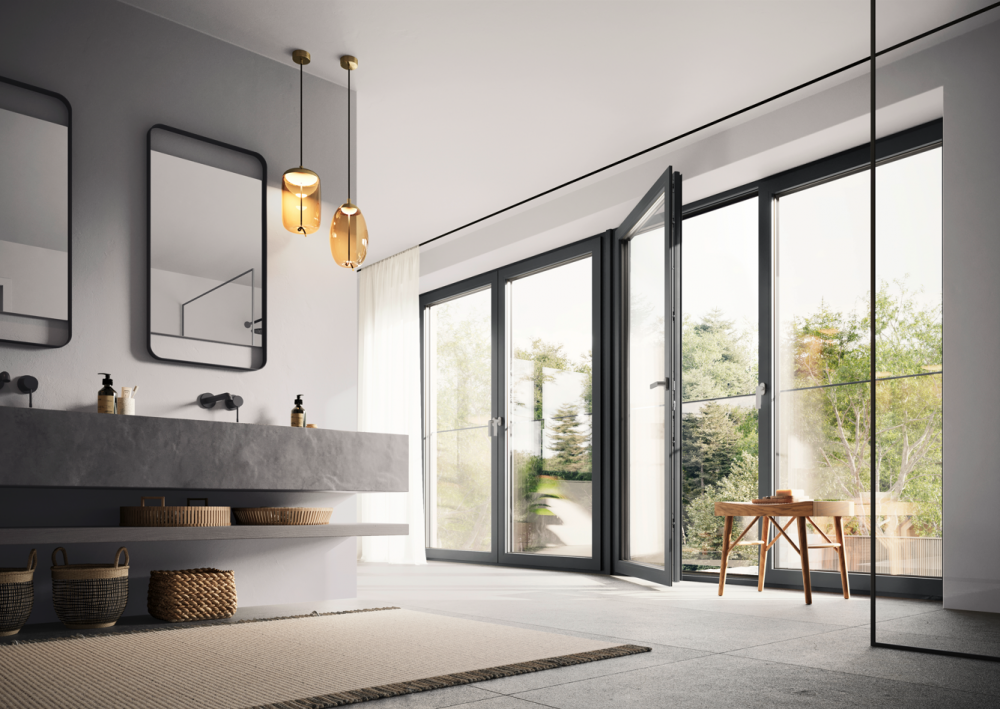

Floor to ceiling window elements without top-lights - up to 2.8 meters high

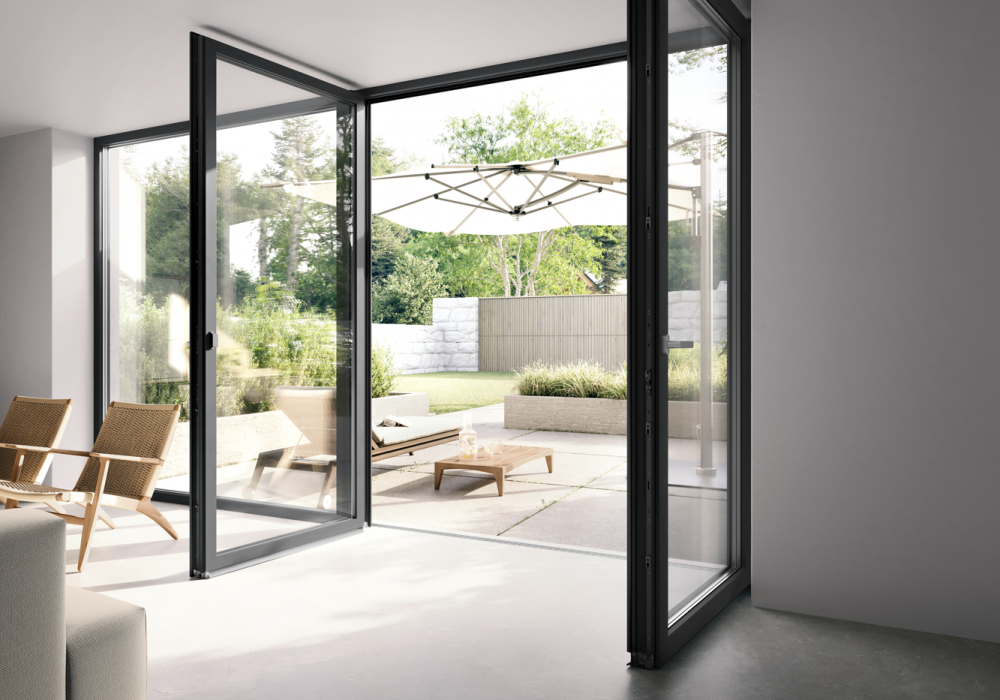

Demand for larger windows has never been so high. ARTEVO redefines the limits of what is possible in terms of size and allows for a completely new sense of living with rooms flooded with light.

0 mm ground sill

Barrier-free access without trip hazards - In fact, it’s not fair to call it a "sill", because thanks to its 0 mm installation height, the RAUCERO* threshold offers floor-level access without tripping hazards. The clever bridging seal prevents marks on the floor and the threshold. Cleaning is also child’s play thanks to the removable stainless
steel grate.

RC 3 security

Keep intruders at bay - ARTEVO windows achieve resistance class RC 2 with ease, even without steel reinforcements. The requirements of resistance class RC 3 can also be fulfilled with appropriate additional measures.* Standard windows have low burglary protection and can therefore be broken into quickly. Windows with resistance class RC 2 or RC 3, on the other hand, take significantly longer and, above all, require heavy tools to be breached.

97% less noise

Enjoy your home again - Noise, even if imperceptible, is associated with negative health outcomes. ARTEVO windows can help improve your quality of life. Why? Because they reduce noise by up to 48 decibels. This corresponds to an almost 97% reduction in the noise heard by the human ear.

Technical Characteristics:

• Assembly height – frame/sash 106 mm to 173 mm
• Profile depth 80mm
• Heat transfer coefficient Uf (PN-EN 12412-2 / PN-EN 10077-2)
            ARTEVO up to 0.97 W/m²K
            ARTEVO max up to 0.79 W/m²K
• Acoustic insulation Rw (PN-EN ISO 717-1) up to 48 dB
• Burglary resistance (PN-EN 1627) up to RC 3 class
• Wind load resistance (PN-EN 12210) up to class B5
• Waterproofness (PN-EN 12208) up to class 9A
• Air permeability (PN-EN 12207): up to grade 4
• Maximum glazing thickness up: to 56 mm normal sash / up to 72 mm in the flush sash
