Aliplast Ecofutural OC

Ecofutural OC

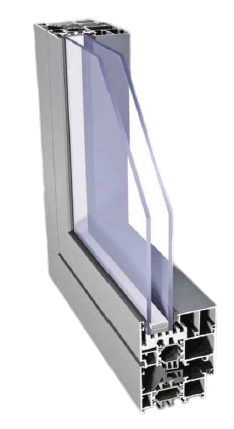

Three-chamber window-door system for designing windows and doors featuring high thermal performance. The system features very good technical parameters.

An aluminium profile system with a thermal insert, used in locations where higher thermal performance is required. Options offered within the ECOFUTURAL system:

• ECOFUTURAL i - with thermal insulation on the perimeter in the spot where the window pane touches the profile.
• ECOFUTURAL i+ - with thermal insulation on the perimeter in the spot where the window pane touches the profile.

The system is suitable to design monoblock type windows and doors with a displaced axis of rotation — PIVOT doors.

Profile shapes are suitable for installation of various types of envelope fittings, designed for the PVC groove.

The profiles can be bent. For a precise profile specification and details of technical parameters relating to profile bending, visit www.aliplast.pl and go to the authorization zone.

A wide range of colours available: RAL palette, structural colours, Aliplast Wood Colour Effect, bi-colour and anodized finish.

The system features frames, the shape of which is of special design, to mask the entire height of the leaf profile. The glazing strip which is invisible from the indoor side is a great advantage of the solution.

The system is suitable to design monoblock type windows.

A very narrow joint of leaves (movable mullion) 77 mm gives the structure a slender look.

The system offers profiles which are ready to install external blinds.

There is the possibility of using Flyscreen system (Flyscreens — fly screens are a practical and an extremely functional protection against insects).

Wide range of colours — RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View — colours imitating stone surfaces (Qualideco PL-0001), anodized colour (Qualanod 1808), bi-colour.

Technical Specification:


EF

• Material - aluminium/polyamide
• Depth of frame - 65-153 mm
• Depth of leaf - 74 mm
• Glazing range - fix 4-50 mm / window 13-59 mm
• Maximum window sizes - single-leaf window: 1230 x 1480 mm / double-leaf window: 3000 x 2500 mm


EF OC

• Material - aluminium/PVC
• Depth of frame - 65-177 mm
• Depth of leaf - 68 mm
• Glazing range - fix 21-26 mm / window 21-32 mm
• Maximum window sizes - single-leaf window: 1000 x 2500 mm / double-leaf window: 1600 x 2500 mm

Performance:


EF

• Thermal insulation Uf* - Uf from 1,50 W/m²K
• Air permeability - Class 4; EN 12207
• Windload resistance - C4 (1600 Pa); EN 12210
• Watertightness - 9A (600 Pa); EN 12208


EF i

• Thermal insulation Uf* - Uf from 1,44 W/m²K
• Air permeability - Class 4; EN 12207
• Windload resistance - C4 (1600 Pa); EN 12210
• Watertightness - 9A (600 Pa); EN 12208


EF i+

• Thermal insulation Uf* - Uf from 1,27 W/m²K
• Air permeability - Class 4; EN 12207
• Windload resistance - C4 (1600 Pa); EN 12210
• Watertightness - 9A (600 Pa); EN 12208


EF OC

• Thermal insulation Uf* - Uf from 1,66 W/m²K
• Air permeability - Class 4; EN 12207
• Windload resistance - C3 (1200 Pa); EN 12210
• Watertightness - E900 (900 Pa); EN 12208

*Thermal insulation is dependent on a combination of profiles and thickness of the filling.
