Aliplast Superial




Superial 800 i+


A door system designed for doors with high thermal insulation parameters.


The system is compatible with the Superial system - thanks to adaptive profiles designs in series SP 800, which can be integrated with Superial shop windows.


The system features very good anti-burglary properties (the lock is situated far from the outer side).


A thermal insulation threshold is used, which can be disassembled following door installation in the frame.


The option of bending profiles (detailed specification of profiles and detailed technical parameters of a profile bending process are available in the customer area of the website www.aliplast.pl).


System SP 800 is also available in the variant with improved thermal insulation power (SP 800 i, SP 800 i+), which was achieved by applying special thermal inserts slid between thermal separators and around the glass pane. Such a solution improves the insulating power of the profile by 0,2 – 0,5 W/m²K.


There is a possibility of using the Flyscreen system (Flyscreens – fly screens are a practical and extremely functional protection against insects).


Wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodized colour (Qualanod 1808), bi-colour.


Technical Specification:


SP 800

  • Depth of frame - 75 mm
  • Depth of leaf - 75 mm
  • Glazing range - 14-61 mm
  • Acoustic - 44 (0,-2) dB
  • Maximum door sizes* - single-leaf door 1300 x 2800 mm, double-leaf door 2500 x 2800 mm

SP 800 i+

  • Depth of frame - 75 mm
  • Depth of leaf - 75 mm
  • Glazing range - 14-61 mm
  • Acoustic - 44 (0,-2) dB
  • Maximum door sizes* - single-leaf door 1300 x 2800 mm, double-leaf door 2500 x 2800 mm

*Guidelines in the technical catalog.


Performance:


SP 800

  • Thermal insulation Uf * - Uf from 1,61 W/m²K
  • Air permeability - Class 4; EN 12207
  • Windload resistance - CE 2400 (2400 Pa); EN 12210
  • Watertightness - Class 8A; EN 12208

SP 800 i+

  • Thermal insulation Uf * - Uf from 1,36 W/m²K
  • Air permeability - Class 4; EN 12207
  • Windload resistance - CE 2400 (2400 Pa); EN 12210
  • Watertightness - Class 8A; EN 12208

*Thermal insulation is dependent on a combination of profiles and thickness of the filling.


Download

Superial 800 i+ information brochure

(pdf 1.49 MB)

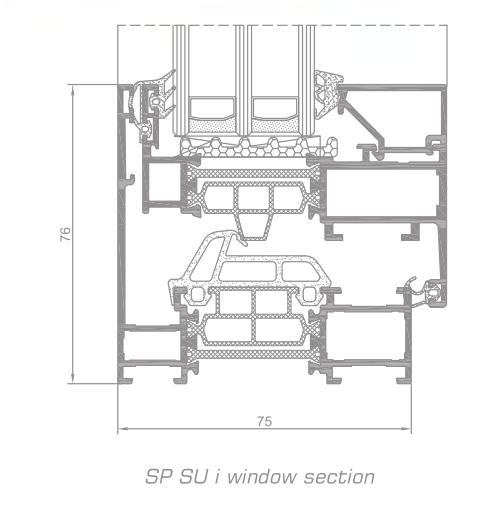

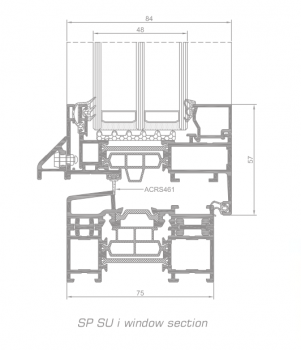

SP SU

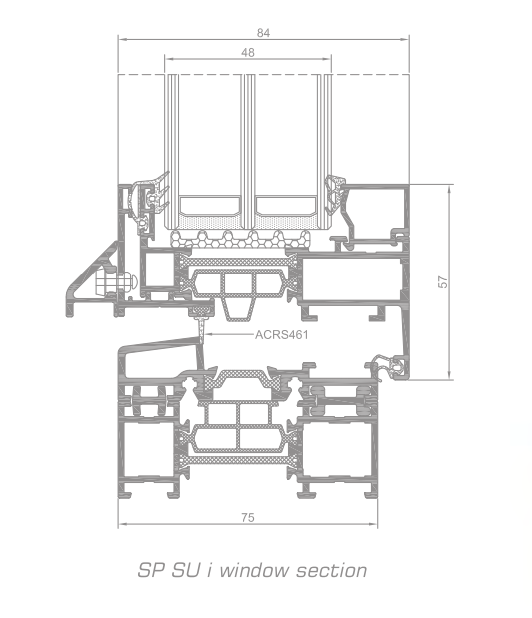

A three-chamber window system with thermal insulation designed for designing windows with a hidden sash, invisible from the outside.


A specially designed shape of the frame hides the full height of the sash profile.


A wide range of glazing allows using all types of single and double cavity, acoustic and anti-burglary glass panels.


Profile drainage in two variants: traditional and hidden.


An available option of a low threshold in a single wing balcony door (in addition, structural tightness was improved thanks to application of ACSR461 gasket).


The option of bending profiles (detailed specification of profiles and detailed technical parameters of profile bending process are available in the customer area of the website www.aliplast.pl).


The hidden sash system is the system preferred by designers, as it allows "hiding" windows in aluminium and glass structure. Thanks to the application of this solution opened and fixed window segments look identical from the outside.


The system SP SU is also available in the variant with improved thermal insulation power.

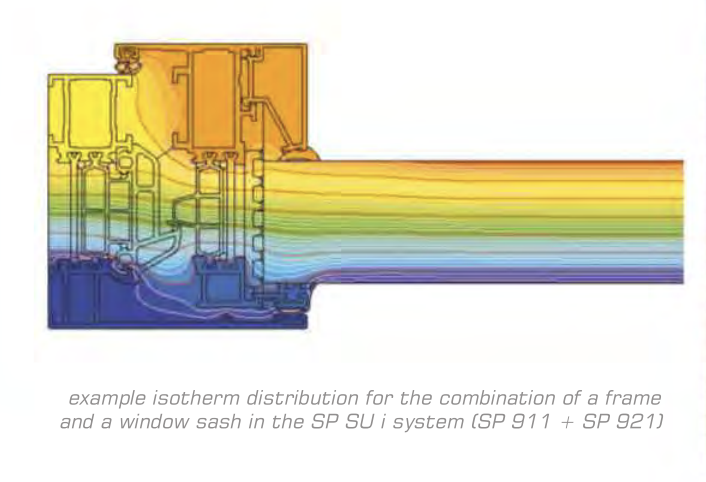

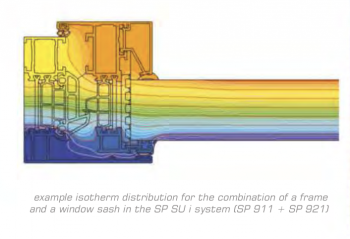

  • SP SU i z which was achieved by applying thermal insulation under the glass panel.

There is the possibility of using the Flyscreen system (Flyscreens – fly screens are a practical and an extremely functional protection against insects).


Wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodized colour (Qualanod 1808), bi-colour.


Technical Specification:



SP SU

  • Depth of frame - 75 mm
  • Depth of leaf - 78 mm
  • Glazing range - 14-51 mm
  • Acoustic - 47 (-1,-5) dB
  • Maximum window sizes* - single-leaf window 1300 x 2500 mm, double-leaf window 2000 x 2200 mm



SP SU i

  • Depth of frame - 75 mm
  • Depth of leaf - 78 mm
  • Glazing range - 14-51 mm
  • Acoustic - 47 (-1,-5) dB
  • Maximum window sizes* - single-leaf window 1300 x 2500 mm, double-leaf window 2000 x 2200 mm



*Guidelines in the technical catalog.


Performance:



SP SU ​

  • Thermal insulation Uf * - Uf from 1,48 W/m²K
  • Air permability - Class 4; EN 12207
  • Windload resistance - Class C4/B4; EN 12210
  • Watertightness - Class E1200; EN 12208



SP SU i ​

  • Thermal insulation Uf * - Uf from 1,12 W/m²K
  • Air permability - Class 4; EN 12207
  • Windload resistance - Class C4/B4; EN 12210
  • Watertightness - Class E1200; EN 12208



*Thermal insulation is dependent on a combination of profiles and thickness of the filling.




Download

Superial SU information brochure

(pdf 1.6 MB)

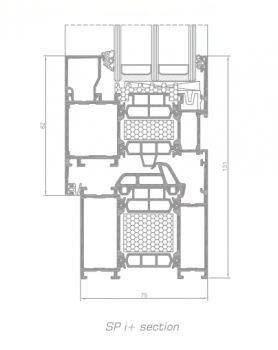

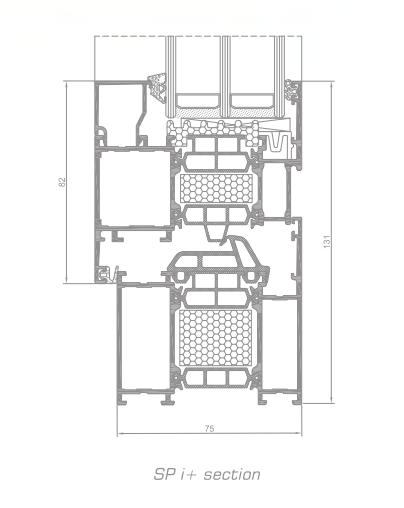

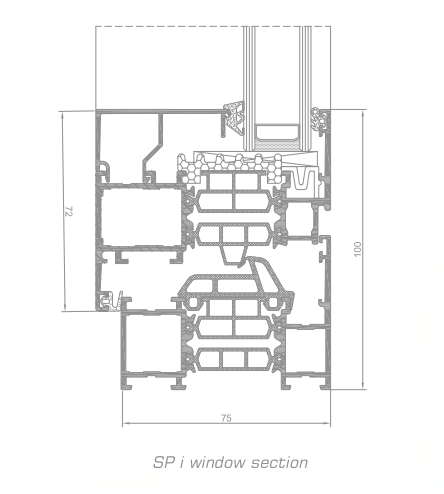

SP i+


The system is designed for designing windows, doors, and shop windows with high thermal insulation parameters.

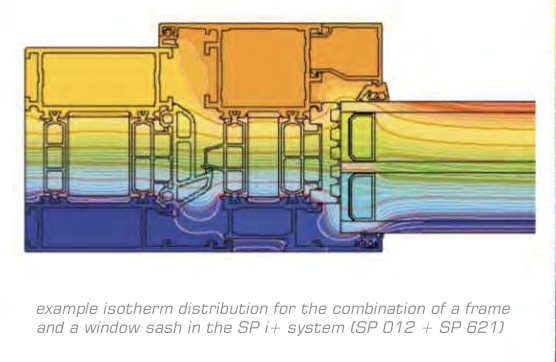

A high thermal insulation power was achieved by applying special thermal inserts between thermal separators and around the glass pane. Available options: SP, SP i, SP i+.


A large number of shapes in the system guarantees the obtained desired appearance and structural strength.


The option of installing windows in facade systems.


Glazing strips available in a rectangular and circular variant.


The shapes of profiles suitable for the installation of various peripheral hardware, including hidden hinges and PCV hardware.


A broad range of glazing allows using all types of single and double cavity, acoustic and anti-burglary glass panels.


Profile drainage in two variants: traditional and hidden.


The option of bending profiles (detailed specification of profiles and the detailed technical parameters of profile bending process are available in the in the authorisation zone of the website www.aliplast.pl).


The available option of a low lintel in single or double wing rectangular balcony door (designs using dedicated profiles); in addition, structural tightness was improved thanks to the application of ACRS461 gasket.


The system is designed for use in residential and public buildings, and also allows designing modern window solutions in multiple variants.

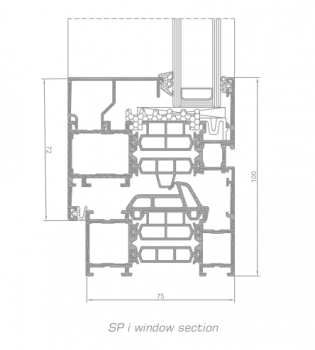

The design of systems SP i, SP i+ is based on a proven, extensive and recognized base system Superial.


There is a possibility of using the Flyscreen system (Flyscreen – fly screens are a practical and an extremely functional protection against insects).


Wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodized colour (Qualanod 1808), bi-colour.




Technical Specification:



SP

  • Depth of frame - 75 mm
  • Depth of leaf - 84 mm
  • Glazing range - 14-61 mm
  • Acoustic - 47 (-1,-3) dB
  • Maximum window sizes - single-leaf window 1255 x 2750 mm, double-leaf window 1750 x 2240 mm
  • Maximum door sizes - single-leaf door 1300 x 2800 mm, double-leaf door 2500 x 2800 mm



SP i+

  • Depth of frame - 75 mm
  • Depth of leaf - 84 mm
  • Glazing range - 14-61 mm
  • Acoustic - 47 (-1,-3) dB
  • Maximum window sizes - single-leaf window 1255 x 2750 mm, double-leaf window 1750 x 2240 mm
  • Maximum door sizes - single-leaf door 1300 x 2800 mm, double-leaf door 2500 x 2800 mm

Performance:



SP

  • Thermal insulation Uf * - Uf from 1,41 W/m²K
  • Air permability - Class 4; EN 12207
  • Windload resistance - Class C5/B5; EN 12210
  • Watertightness - Class E1950; EN 12208



SP i+ ​

  • Thermal insulation Uf * - Uf from 1,08 W/m²K
  • Air permability - Class 4; EN 12207
  • Windload resistance - Class C5/B5; EN 12210
  • Watertightness - Class E1950; EN 12208



*Thermal insulation is dependent on a combination of profiles and thickness of the filling.



Download

Superial i+ information brochure

(pdf 1.84 MB)







SP OUT


System Superial OUT is designed for tilt-out and turn-out windows.


The system Superial OUT features a faced internal surface of the frame and the sash.


The system Superial OUT is fully compatible with the window system Superial (they share system elements: connectors, gaskets, glazing strips).


Turn-out windows can be fitted with two types of hinges: rotating hinges or scissor hinges; window hardware used allows tilting the top or the bottom of the window outwards; option of a turn-out window with the stop limit.


Turn-out windows can be fitted with two types of hinges: rotating hinges or scissor hinges.


An available option of integrating windows with walls by using a reversing profile.


Maximum dimensions and weights of structures in Superial OUT system:

  • Tilt-out windows - minimum width and height of sash 500 mm, maximum width and height of sash 2000 mm, maximum weight of sash 100 kg for tilt-out windows.
  • Turn-out windows - minimum width and height of sash 500 mm, maximum width of sash 1500 mm, height of sash 3000 mm, maximum weight of sash 120 kg for turn-out windows.

The system SP OUT is available in the variant with improved thermal insulation power:

  • SP OUT i with additional thermal insulation at the profile-glass interface.
  • SP OUT i+ with additional thermal insulation between thermal spacers.

This system is very popular in Nordic countries and on the British Isles. Perfectly matching old and stylized manor houses, wood cabins or simple Scandinavian-type houses. Shutters are often used with such windows.


There is a possibility of using the Flyscreen system (Flyscreen – fly screens are a practical and an extremely functional protection against insects).


The option of bending profiles (detailed specification of profiles and detailed technical parameters of profile bending process are available in the customer area of the website www.aliplast.pl).


Wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodized colour (Qualanod 1808), bi-colour.


Technical Specification:



SP OUT

  • Material - aluminium / polyamid
  • Depth of frame - 75 mm
  • Depth of leaf - 84 mm
  • Glazing range - max 61 mm
  • Maximum window sizes - single-leaf window 1456 x 2356 mm



SP OUT i+

  • Material - aluminium / polyamid
  • Depth of frame - 75 mm
  • Depth of leaf - 84 mm
  • Glazing range - max 61 mm
  • Maximum window sizes - single-leaf window 1456 x 2356 mm

Performance:



SP OUT

  • Thermal insulation Uf * - Uf from 1,65 W/m²K
  • Air permability - Class 4; EN 12207
  • Windload resistance - Class C5/B5; EN 12210
  • Watertightness - Class E900; EN 12208



SP OUT i+ ​

  • Thermal insulation Uf * - Uf from 1,41 W/m²K
  • Air permability - Class 4; EN 12207
  • Windload resistance - Class C5/B5; EN 12210
  • Watertightness - Class E900; EN 12208



*Thermal insulation is dependent on a combination of profiles and thickness of the filling.



Download

Superial OUT information brochure

(pdf 1.85 MB)
×
