Aliplast Max Light

The specific shape of the Max Light system profiles (resembling steel profiles) gives the structure a modern industrial character.

System application: fixed windows, opening windows: single- or double-sash windows with tilting, opened inwards.

Balcony doors inward and outward opening solution is available (threshold options).

The Max Light system meets the requirements for the burglary resistance class RC2 for compliance with EN 1627.

Available system options: Max Light DESIGN, Max Light INVISIBLE, Max Light MODERN, Max Light STEEL; Max Light - these are a group of systems standing out on the market by their unique design, dedicated to modern architectural designs.

Wide range of colours - RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loh View - colours imitating stone surfaces (Qualideco PL-0001), anodized colour (Qualanod 1808), bi-colour.

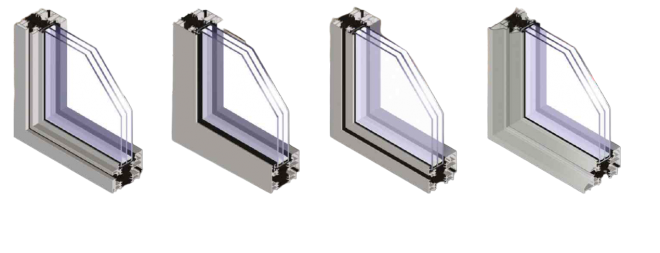

• Max Light Design
• Max Light Invisible window
• Max Light Modern window
• Max Light Steel window

Technical Specification:

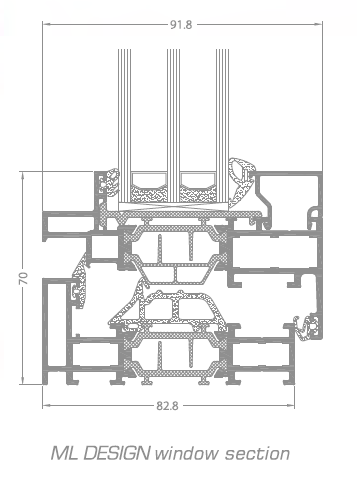

Max Light Design

• Material - aluminium / polyamid
• Minimum visible width inward opening window - frame: 35mm, sash: 35mm
• Minimum visible width inward opening door - frame 35mm, sash: 68mm
• Minium visible width outward opening door - frame: 15mm, sash 88mm
• Installation depth frame - 83mm
• Installation depth sash - 92mm
• Rebate height - 15mm
• Glass thickness - up to 59mm
• Maximum window sizes - single 1230mm x 1480 mm, tripple 3000mm x 2400mm

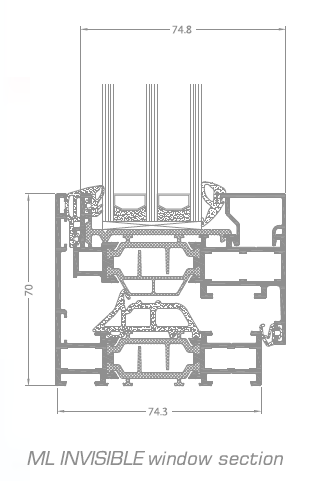

Max Light Invisible

• Material - aluminium / polyamid
• Minimum visible width inward opening window - frame (hidden sash): 70mm
• Minimum visible width inward opening door - -------------------------
• Minium visible width outward opening door - -------------------------
• Installation depth frame - 75mm
• Installation depth sash - 84mm
• Rebate height - 15mm
• Glass thickness - up to 59mm
• Maximum window sizes - single 1230mm x 1480 mm, tripple 3000mm x 2400mm

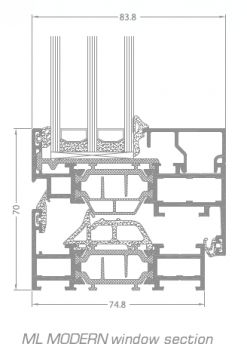

Max Light Modern

• Material - aluminium / polyamid
• Minimum visible width inward opening window - frame: 35mm, sash: 35mm
• Minimum visible width inward opening door - frame 35mm, sash: 68mm
• Minium visible width outward opening door - frame: 15mm, sash 88mm
• Installation depth frame - 75mm
• Installation depth sash - 84mm
• Rebate height - 15mm
• Glass thickness - up to 68mm
• Maximum window sizes - single 1230mm x 1480 mm, tripple 3000mm x 2400mm

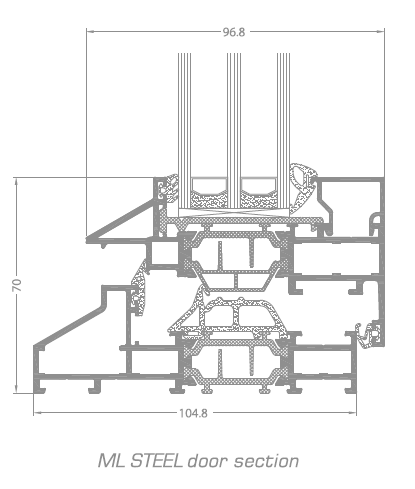

Max Light Steel

• Material - aluminium / polyamid
• Minimum visible width inward opening window - frame: 35mm, sash: 35mm
• Minimum visible width inward opening door - frame 35mm, sash: 68mm
• Minium visible width outward opening door - frame: 15mm, sash 88mm
• Installation depth frame - 105mm
• Installation depth sash - 97mm
• Rebate height - 15mm
• Glass thickness - up to 59mm
• Maximum window sizes - single 1230mm x 1480 mm, tripple 3000mm x 2400mm

Performance:

System - Max Light

• Thermal insulation Uf * - Uf up to 1,8 W/m'K (dependent on the pofile combination)
• Air permability - Class 4; EN 12207
• Windload resistance - Class CS; EN 12210
• WAtertightness - Class E1650; EN 12208
