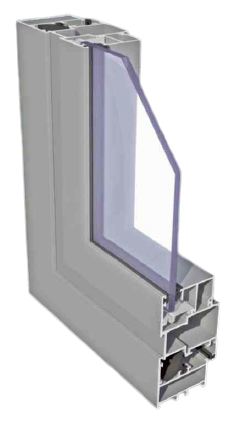

Aliplast Econoline

Econoline Panel Door

The system is designed for designing windows and doors without thermal insulation.

The system is compatible with all other Aliplast systems: shared glazing strips, gaskets, corner shapes, and hardware.

The system is designed for designing elements of interior and exterior architecture without thermal insulation: windows, doors, segments of partition walls for general use in public and industrial buildings (in office spaces).

The possibility of designing sliding doors and swinging doors, joining walls at any angle, and reinforcing already completed or even installed elements.

The Econoline system has the option of using construction hinges rebate.

The door system Econoline with smoke protection fulfills the criteria of class smoke tightness Sa, Sm according to PN-EN 13501-2 + A1: 2010.

The possibility of integrating Econoline doors in partition walls, made of Econoline panels or other panels in any design.

Glazing strips available in a rectangular and circular variant.

The option of bending profiles (detailed specification of profiles and detailed technical parameters of profile bending process are available in the authorization zone of the website www.aliplast.pl).

Wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodized colour (Qualanod 1808), bi-colour.

An aluminium system without thermal insulation used to design panelled doors.

The load-bearing structure of the panelled door system is provided by the Econoline system.

Panel-type Econoline is used to design indoor structures (doors) in residential and public buildings.

One plane of the frame and the panel bonded onto the leaf are flushed (panel bonded from the external side or double-sided).

The system is characterized by a range of infill panels available in various patterns and colours.

A wide range of hardware available on the market.

Wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodized colour (Qualanod 1808), bi-colour.

Technical Specification:


EL Window

• Depth of frame - 51 mm
• Depth of leaf - 60 mm
• Glazing range - max 37 mm
• Acoustic - 37 (-2,-6) dB
• Type of windows - casement, tilt & turn


EL Door

• Depth of frame - 51 mm
• Depth of leaf - 51 mm
• Glazing range - max 37 mm
• Acoustic - 38 (-1,-3) dB
• Maximum door sizes - single-leaf door: 1400 x 2500 mm / double-leaf door: 2400 x 2500 mm


PD EL

• Depth of frame - 51 mm
• Depth of leaf - 51 mm
• Glazing range - 51 mm
• Acoustic - 32 (0,-2) dB
• Maximum door sizes - single-leaf door: 1400 x 2500 mm
