Aliplast Steel look

ST1000

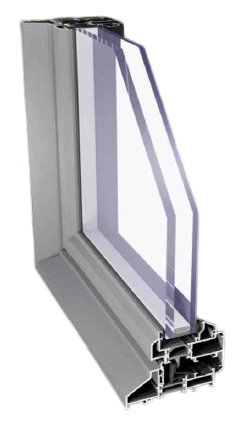

A three-chamber window and door system with thermal insulation.

The system is distinctive due to the specific profile shape.

The system is used to design renovated and wood-imitating windows.

Glazing strips are available in the "soft" version (rounded shapes).

Thermal insulation (Uf) from 1,85 W/m²K.

Wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodized colour (Qualanod 1808), bi-colour.

Technical Specification:


ST1000

• Material - aluminium/polyamide
• Depth of frame - 90 mm
• Depth of leaf - 74.4 mm
• Glazing range - 5-43 mm
• Maximum window sizes - single-leaf window: 1200 x 2500 mm
• Type of doors - tilt

Performance:


ST1000

• Thermal insulation Uf* - Uf from 1,85 W/m²K
• Air permeability - Class 4; EN 12207
• Windload resistance - Class 7A (300 Pa); EN 12210
• Watertightness - Class C4 (1600 Pa); EN 12208

*Thermal insulation is dependent on a combination of profiles and thickness of the filling.
