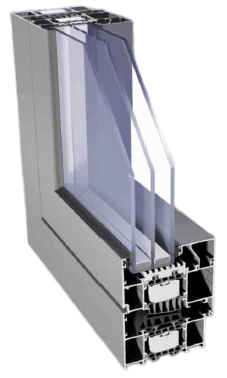

Aliplast Star

The modern aluminium system for designing windows and doors requiring very good thermal insulation.

Thermal separator 45 mm deep, made of solid and proven materials, is an effective thermal barrier.

The same type of insulation insert in the window sash and in the window frame provides continued protection against heat losses of the whole structure.

New standard of profile and glass pane interface - increased depth improves thermal properties and structure of the system.

New type of corner section used, preventing collision between the screw and the corner when screwing in surface hardware elements under the PVC groove.

Possibility of adding roller hinge system hardware with very high load-bearing capacity.

Innovative drainage system (no visible elements stopping drainage outlets).

The same type of corner and T connector in the external and internal cavity (reduced number of accessories, faster fabrication).

Reduced number of glazing strips and gaskets, while keeping the continuity of glazing depending on package thickness.

Option of bending profiles (detailed specification of profiles and detailed technical parameters of profile bending process are available in the customer area of the website www.aliplast.pl).

Modern design.

The system is particularly recommended for low energy consumption and thermal insulation retrofitted buildings, and they also improve thermal comfort in standard objects.

There is the possibility of using the Flyscreen system (Flyscreen – fly screens are a practical and an extremely functional protection against insects).

Wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodized colour (Qualanod 1808), bi-colour.

Technical Specification:


GT window

• Depth of frame - 90 mm
• Depth of leaf - 99 mm
• Glazing range - fixed: 14-72 mm / ru: 23-81 mm
• Acoustic - 48 (-2,-5) dB
• Maximum window sizes - single-leaf window: 1200 x 2870 mm / double-leaf window: 2200 x 2870 mm

GT door

• Depth of frame - 90 mm
• Depth of leaf - 99 mm
• Glazing range - 14-72 mm
• Acoustic - 45 (-1,-3) dB
• Maximum door sizes - single-leaf door: 1300 x 2800 mm / double-leaf door: 2500 x 3000 mm

Performance:

GT window

• Thermal insulation Uf* - Uf from 0.73 W/m²K
• Air permeability - Class 4; EN 12207
• Windload resistance - Class C5/B5; EN 12210
• Watertightness - Class E900; EN 12208

GT door

• Thermal insulation Uf* - Uf from 1.21 W/m²K
• Air permeability - Class 4; EN 12207
• Windload resistance - Class C5/B5; EN 12210
• Watertightness - Class E1350; EN 12208

*Thermal insulation is dependent on a combination of profiles and thickness of the filling.
